8-Way Wago 773-108 Push Connectors 2.5mm²
by Wago
SKU 356087
MPN: 773-108
Availability:
22 in stock
Original price
£0.42
-
Original price
£0.42
Original price
£0.42
Inc VAT
£0.42
-
£0.42
Current price
£0.42
Inc VAT

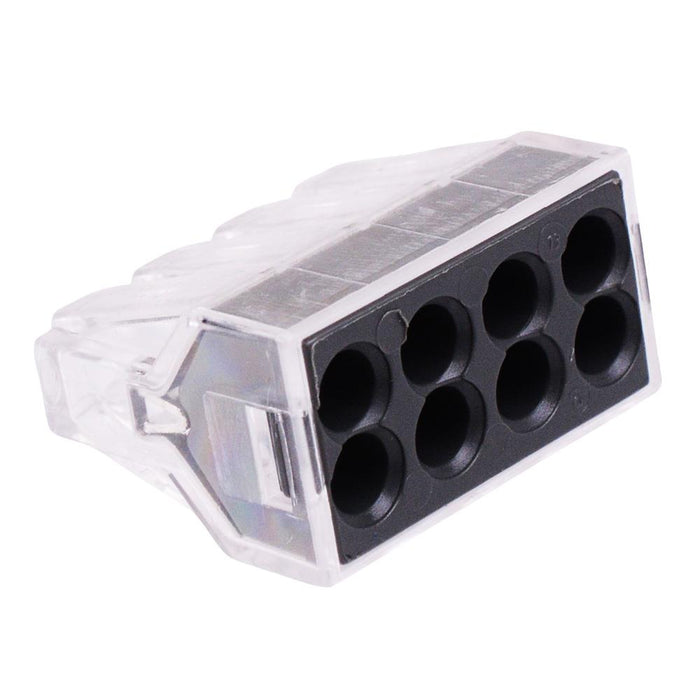

The WAGO 773-108 is a 8 way push wire connector for junction boxes providing an immediate solution for use with solid conductors with cross sections up 2.5mm². The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.
Transparent housing Push wire technology Solid conductor wire size: 0.75 to 2.5mm² Stranded conductor wire size: 1.5 to 2.5mm² Wire strip length: 12mm Maximum current: 24A Maximum voltage: 400V
Specification
| Back order lead time | 5 Days |
| Colour | Black |
| Contact material | Copper |
| Current rating | 24A |
| Housing material | PC |
| Mounting type | Cable Mount |
| Number of ways | 8 |
| Termination method | Push In |
| Voltage rating | 400V |
| Wire range | 2.5mm² Maximum |
