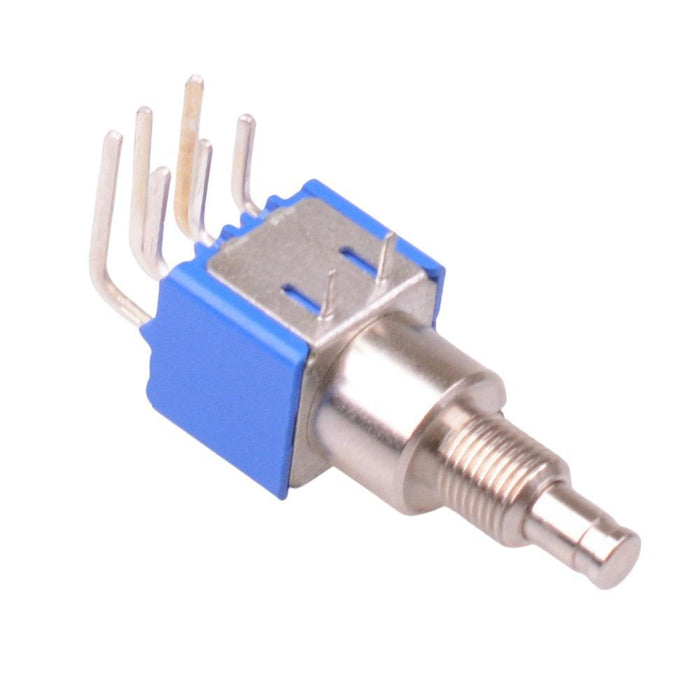

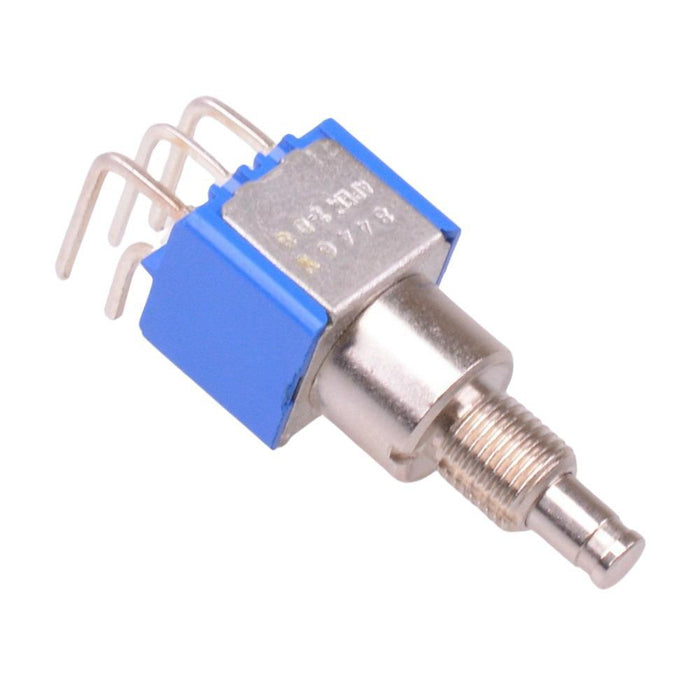

8446WA Latching On-On Right Angle PCB Push Button Switch DPDT
by APEM
SKU 489896
MPN: 8446WA
Availability:
Out of stock
Sold out
Original price
£7.38
-
Original price
£7.38
Original price
£7.38
£7.38
£7.38
-
£7.38
Current price
£7.38
The 8446WA is a On-On latching push button switch by APEM, featuring SPDT contacts and 6.35mm bushing. The switch features 4A 30VDC rating and right angle PCB terminals.
SPDT contacts On-On latching function Right angle PCB terminals Silver contacts 6.35mm threaded bushing Rating: 4A 30VDC Terminal pitch: 4.0mm
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Pitch | 4.0mm |
| Product Series | 8000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
