8636CDBK APEM On-On 6.35mm Sealed Push Button Switch SPDT
by APEM
SKU 487686
MPN: 8636CDBK
Availability:
Out of stock
Sold out
Original price
£11.52
-
Original price
£11.52
Original price
£11.52
£13.07
£13.07
-
£13.07
Current price
£13.07

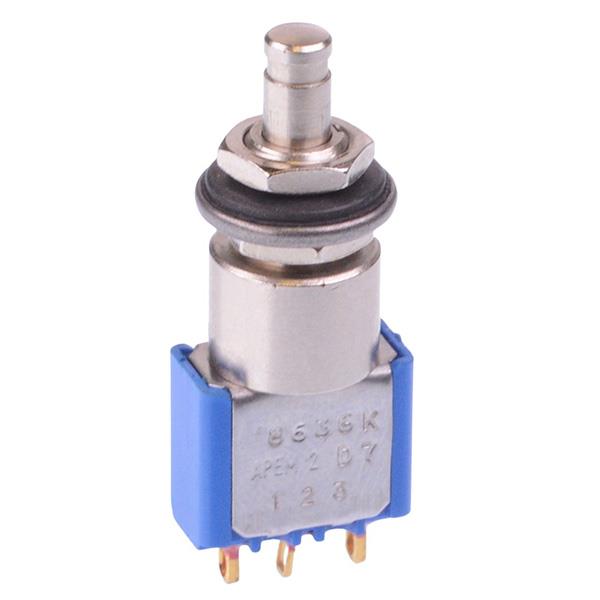

The 8636CDBK is a push button switch featuring 6.35mm threaded bush and SPDT contacts, manufactured by APEM. The switch features solder terminals and is suitable for a wide range of panel mount applications.
SPDT contacts On-On function 6.35mm threaded bushing Gold plated brass terminals Solder terminals Panel cut-out: 6.5mm Rating: 0.4VA 20VAC/DC Front panel sealing
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Product Series | 8000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
