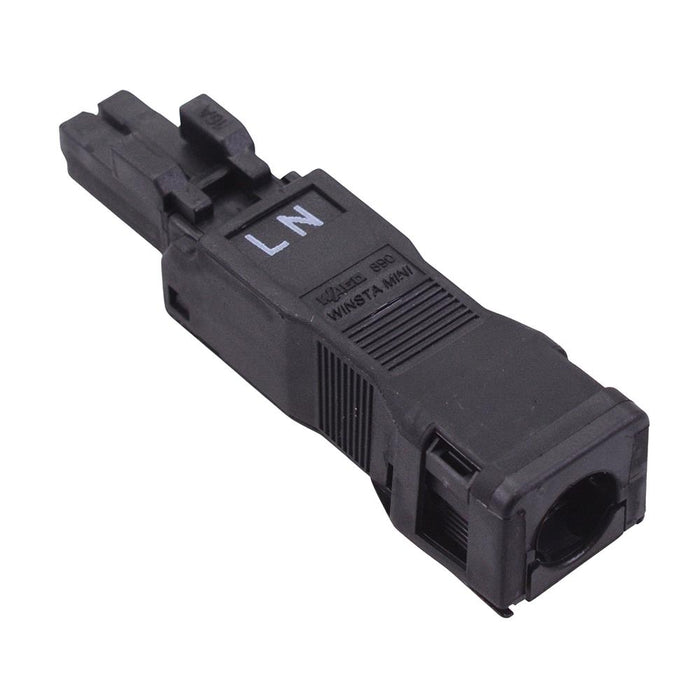

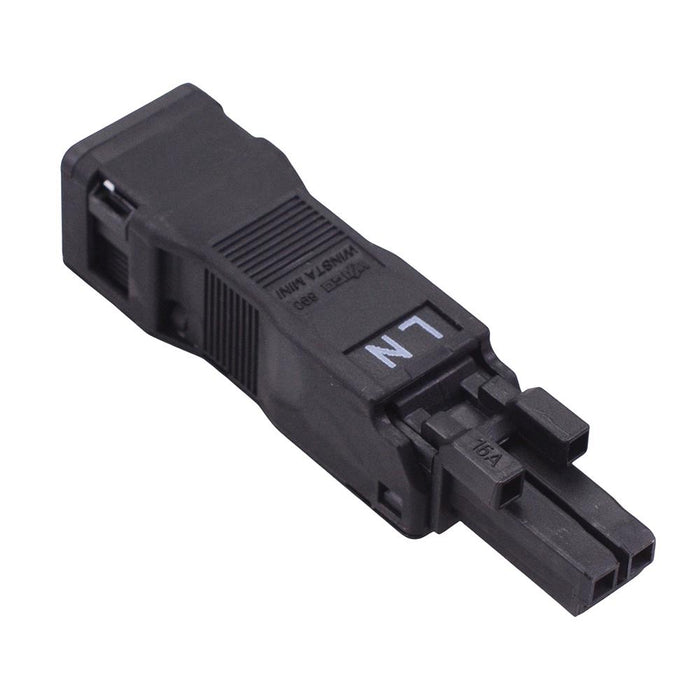

890-102 WAGO 2 Pole WINSTA MINI Socket Strain Relief 16A
by Wago
SKU 489421
MPN: 890-102
Availability:
49 in stock
Original price
£3.94
-
Original price
£3.94
Original price
£3.94
£3.94
-
£3.94
Current price
£3.94
The 890-102 is a 2 pole socket with strain relief from the WAGO WINSTA MINI series of connectors. The socket features A coding and is compatible with solid and stranded conductors up to 1.5mm². The connectors utilise Push-in CAGE CLAMP® technology providing a secure connection to the wire and fast installation. The current rating is 16A making it suitable for a wide range of applications including lighting, control cabinets and PCBs.
2 poles Push-in CAGE CLAMP® technology Coding: A Current rating: 16A Nominal voltage: 250V Rated surge voltage: 4kV Wire size: 0.25-1.5mm² 22-16AWG Wire strip length: 9mm Pin spacing: 4.4mm Width: 15.6mm Height: 13.2mm Depth: 61.6mm
Specification
Back Order Lead Time | 5 Days |
Contact Material | Tin Plated Copper |
Contact Pitch | 4.4mm |
Current Rating | 16A |
Gender | Female |
Housing Material | PA66 |
Mounting Type | Cable |
Number of Ways | 2 |
Operating Temperature | -35°C to +85°C |
Protection Level | IP40 |
Termination Method | Push-In |
Voltage Rating | 250V |
Wire Range | 0.25mm² to 1.5mm² |
