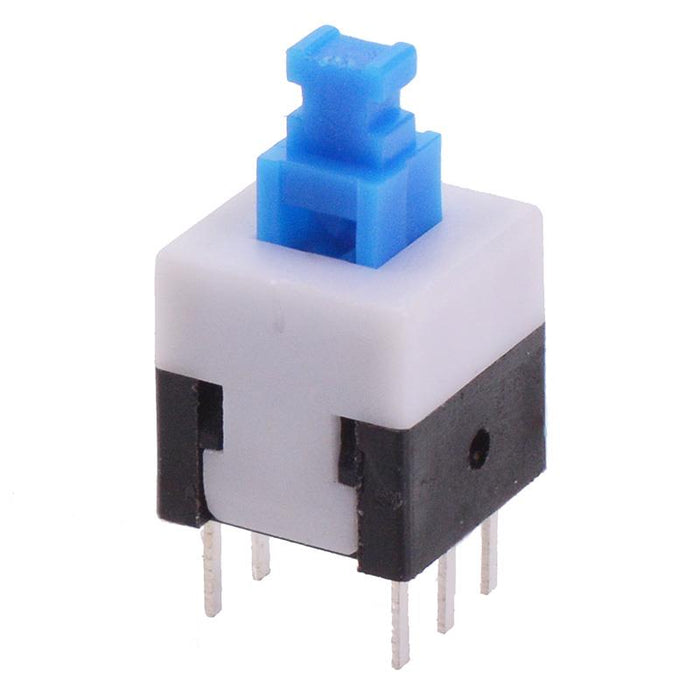

8x8mm Latching PCB Push Button Switch DPDT
SKU 482793
MPN: 482793
Availability:
466 in stock
Original price
£0.33
-
Original price
£0.33
Original price
£0.33
£0.33
£0.33
-
£0.33
Current price
£0.33
Push button switch housed in a compact 8 x 8mm package featuring a latching mechanism and DPDT contacts, suitable for mounting to PCBs.
On-On action DPDT contacts PCB solder terminals 2.5mm pin pitch 3 x 2mm actuator Rating: 0.1A 30VDC Dimensions: 17 x 8 x 8mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | DPDT |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 200gf |
| Operating Temperature | -25°C to +70°C |
| Pitch | 2.5mm |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
