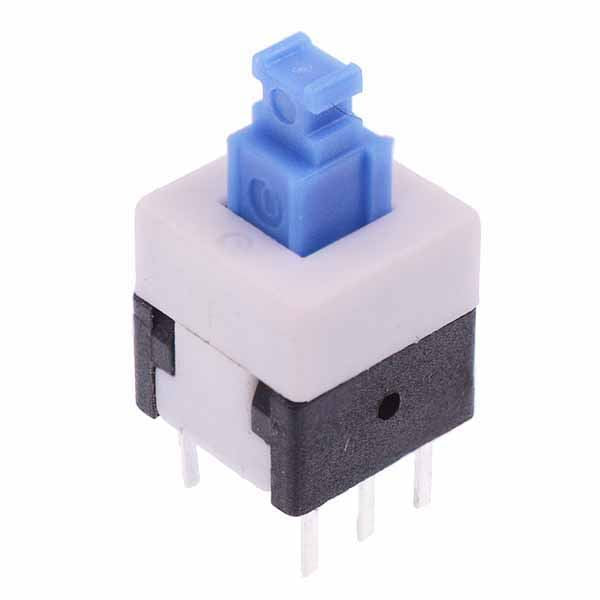

8x8mm Latching PCB Push Switch 0.1A 30VDC

SKU 483104

MPN: 483104

436 in stock
Original price £0.39 - Original price £0.39
Original price
£0.39 Inc VAT
£0.39 - £0.39
Current price £0.39 Inc VAT
Push button switch housed in a compact 8 x 8mm square package featuring a latching mechanism and DPDT contacts, suitable for mounting vertically to PCBs.

  • On-On action
  • DPDT contacts
  • PCB solder terminals
  • 2.5mm pin pitch
  • 3 x 2mm actuator
  • Rating: 0.1A 30VDC
  • Dimensions: 17 x 8 x 8mm (Height x Width x Length)
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration DPDT
    Contact rating 0.1A 30VDC
    Current rating 0.1A
    Electrical life 50,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating force 160gf
    Operating temperature -40°C to +80°C
    Pitch 2.5mm
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 30VDC
