8x8mm Momentary PCB Push Switch 0.1A 30VDC
SKU 483103
MPN: 483103
Availability:
789 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
£0.38
£0.38
-
£0.38
Current price
£0.38

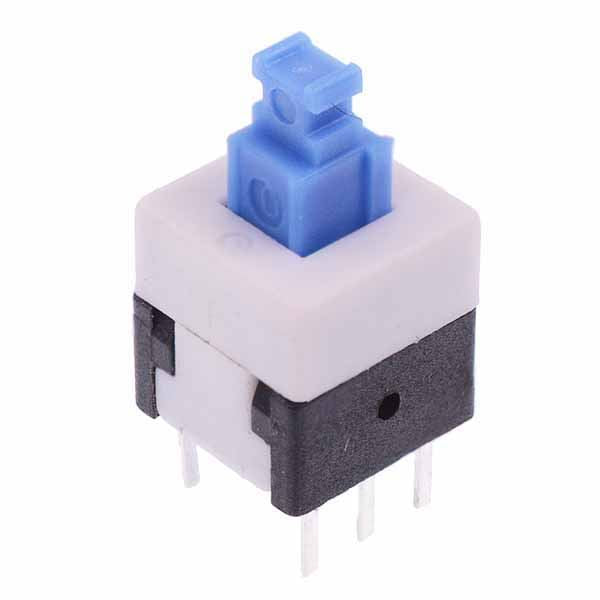

Push button switch housed in a compact 8 x 8mm square package featuring a momentary mechanism and DPDT contacts, suitable for mounting vertically to PCBs.
On-(On) action DPDT contacts PCB solder terminals 2.5mm pin pitch 3 x 2mm actuator Rating: 0.1A 30VDC Dimensions: 17 x 8 x 8mm (Height x Width x Length)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 160gf |
| Operating Temperature | -40°C to +80°C |
| Pitch | 2.5mm |
| Switch Operation | On-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
