9.1V Zener Diode 3W
SKU 402034
MPN: 402034
Availability:
1385 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
£0.17
-
£0.17
Current price
£0.17

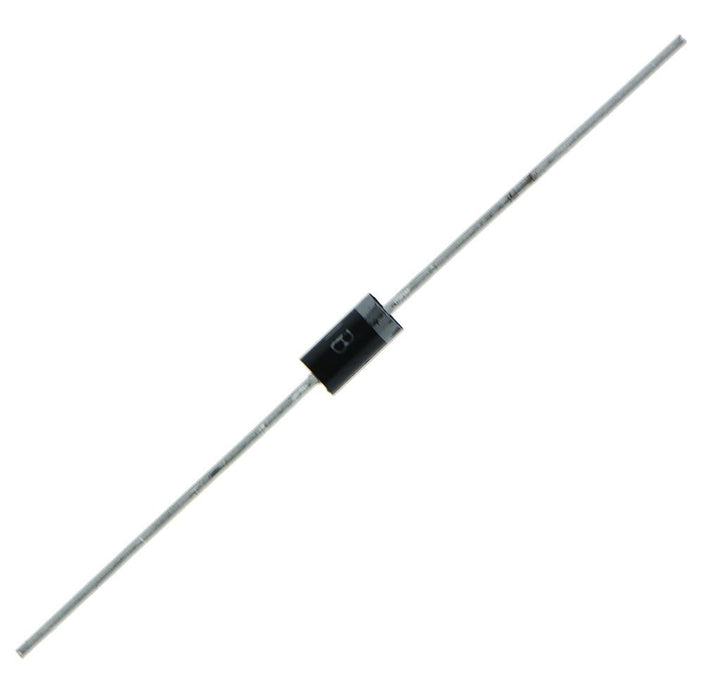

Zener diode with 3W power dissipation housed in a DO-15 package.
Glass encapsulated 5% voltage tolerance Power dissipation: 3W 0.7mm diameter leads Supplied on tape packaging
Specification
Back Order Lead Time | 40 Days |
Body Dimensions | 6.7 x 3.1mm (Length x Diameter) |
Lead Dimensions | 25.4 x 0.78mm (Length x Diameter) |
Maximum Reverse Leakage | 7.5μA |
Maximum Zener Impedance | 2Ω |
MOQ | 10 |
Operating Temperature | -65°C to 150°C |
Package | DO-15 |
Packaging | Tape |
Power Dissipation | 3W |
Test Current | 150mA |
Zener Voltage | 9.1V |
Zener Voltage Tolerance | 5% |
