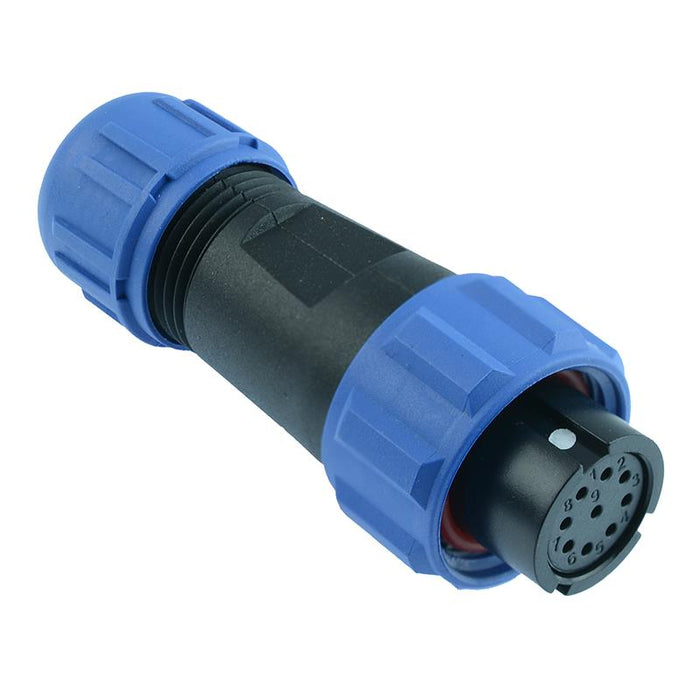

9 Pin Waterproof Female Plug Cable Connector IP68

SKU 482011

MPN: 482011

96 in stock
Original price £3.22 - Original price £3.22
Original price
£3.22 Inc VAT
£3.22 - £3.22
Current price £3.22 Inc VAT
9 way female plug featuring IP68 protection rating suitable for applications requiring a waterproof and rugged connector.

  • Outer cable diameter: 4.5-6mm
  • Protection level: IP68
  • Rating: 3A 125V
  • Solder termination
  • Rated for 500 mating cycles
  • Dimensions: 48 x 18.8mm (length x diameter)
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Current rating 3A
    Gender Female
    Housing material PA66
    Mounting type Cable Mount
    Number of ways 9
    Operating temperature -25°C to +80°C
    Protection level IP68
    Termination method Solder
    Thread size W13
    Voltage rating 125V
    Wire range 4-6.5mm Diameter
