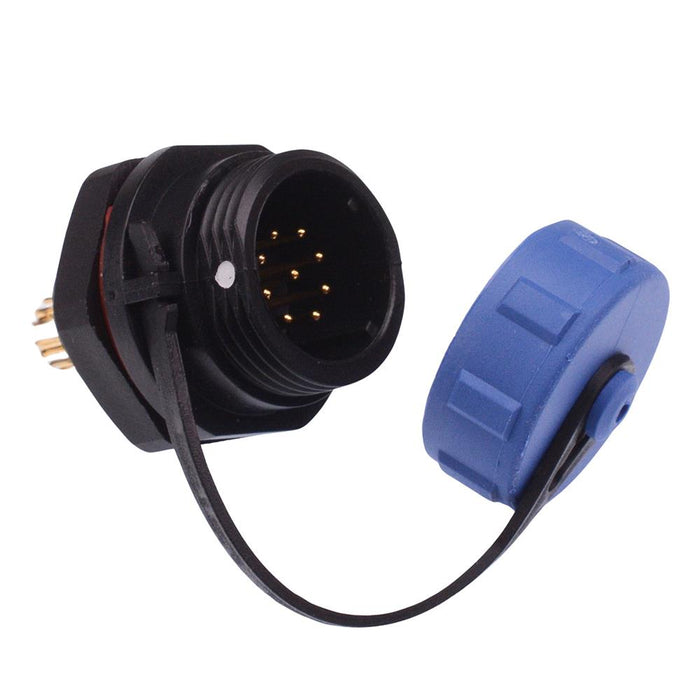

9 Pin Waterproof Male Socket Panel Mount Connector IP68
SKU 482018
MPN: 482018
Availability:
116 in stock
Original price
£2.69
-
Original price
£2.69
Original price
£2.69
£2.69
-
£2.69
Current price
£2.69
9 way male socket featuring IP68 protection rating suitable for panel mount applications requiring a waterproof and rugged connector.
Outer cable diameter: 4.5-6mm Protection level: IP68 Rating: 3A 125V Solder termination Rated for 500 mating cycles Dimensions: 24.4 x 20mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 3A |
| Gender | Male |
| Housing Material | PA66 |
| Mounting Type | Panel Mount |
| Number of Ways | 9 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W13 |
| Voltage Rating | 125V |
| Wire Range | 4-6.5mm Diameter |
