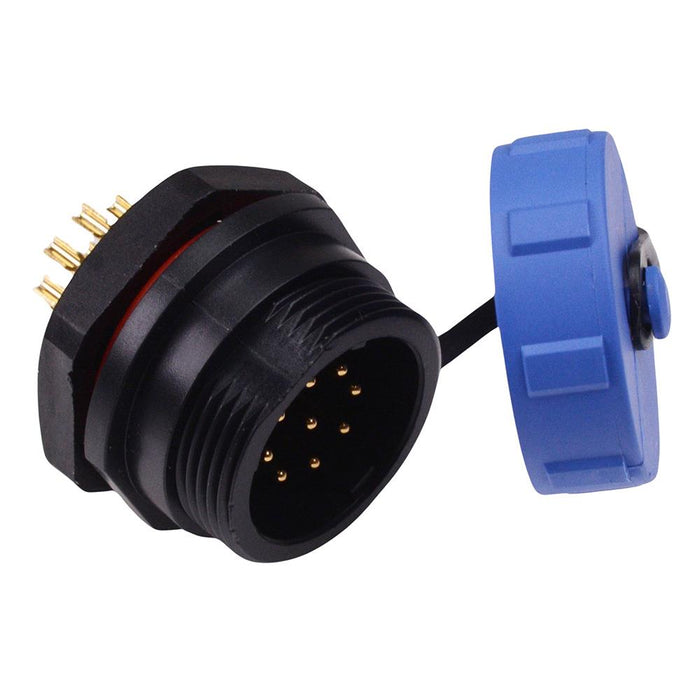

9 Pin Waterproof W17 Male Socket Panel Mount Connector IP68 5A
SKU 488546
MPN: 488546
Availability:
93 in stock
Original price
£2.77
-
Original price
£2.77
Original price
£2.77
Inc VAT
£2.77
-
£2.77
Current price
£2.77
Inc VAT
9 way male panel mount socket featuring IP68 protection and 10A current rating, suitable for applications requiring a waterproof and rugged circular connector.
Protection level: IP68 Rating: 10A 400V Panel cut-out: 17 x 16mm Panel thickness: 3mm max Solder termination Rated for 500 mating cycles Dimensions: 25.2 x 25.5mm (height x diameter)
Specification
| Back order lead time | 30 Days |
| Contact material | Gold Plated Brass |
| Current rating | 5A |
| Gender | Male |
| Housing material | PA66 |
| Mounting type | Panel Mount |
| Number of ways | 9 |
| Operating temperature | -25°C to +80°C |
| Panel cut out | 17mm |
| Protection level | IP68 |
| Termination method | Solder |
| Voltage rating | 400V |
