9-Way Female PCB D Socket Connector
SKU 480199
MPN: 480199
Availability:
291 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
Inc VAT
£0.38
-
£0.38
Current price
£0.38
Inc VAT

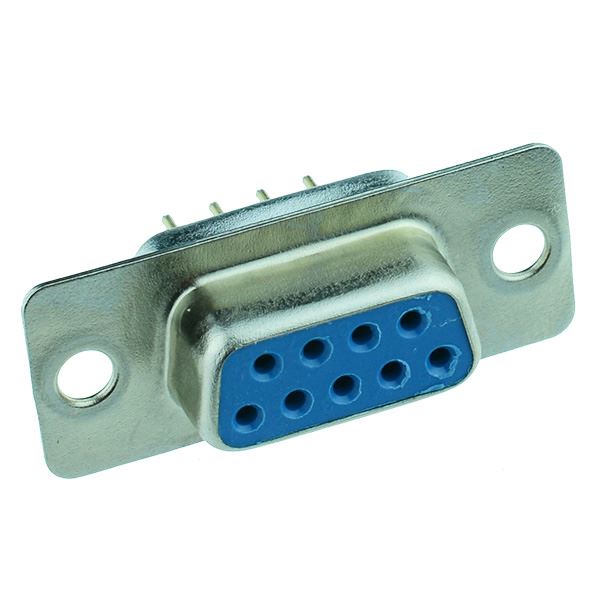

Straight D socket with 9 ways suitable for PCB mounting. The connector features a 2.77mm pitch and solder termination.
9 ways Straight orientation Fixing centres: 24.99mm Width: 30.81mm Housing material: PBT+30% glass fiber (UL94V-0) Contact material: brass or phosphor bronze Jack posts and PCB locating spigots
Specification
| Back order lead time | 30 Days |
| Contact material | Gold Plated Brass |
| Contact pitch | 2.77mm |
| Gender | Female |
| Housing material | PBT |
| Mounting hole pitch | 24.99mm |
| Mounting type | PCB |
| Number of ways | 9 |
| Operating temperature | -40°C to +105°C |
| Termination method | Solder |
