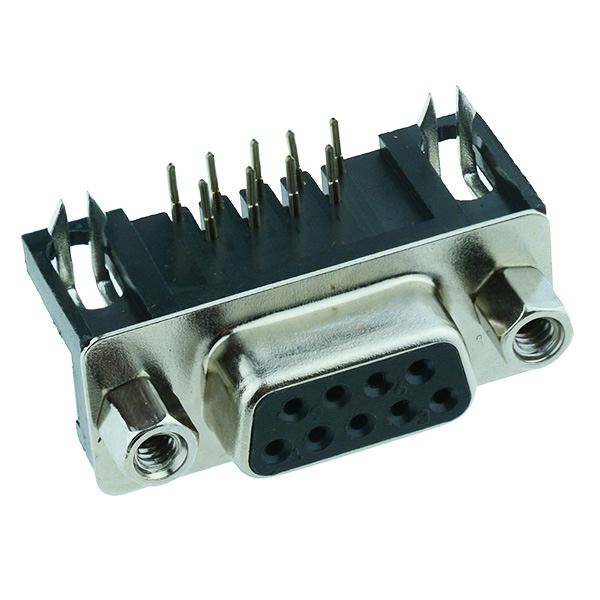

9-Way Right Angle PCB Female D Socket Connector
SKU 480187
MPN: 480187
Availability:
Out of stock
Sold out
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
£0.52
-
£0.52
Current price
£0.52
Right angle D socket with 9 ways suitable for PCB mounting. The connector features a 2.77mm pitch and solder termination.
9 ways Right angle orientation Fixing centres: 24.85mm Width: 30.80mm Housing material: PBT+30% glass fiber (UL94V-0) Contact material: brass or phosphor bronze Jack posts and PCB locating spigots
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Contact Pitch | 2.77mm |
| Gender | Female |
| Housing Material | PBT |
| Mounting Hole Pitch | 24.85mm |
| Mounting Type | PCB |
| Number of Ways | 9 |
| Operating Temperature | -55°C to +105°C |
| Termination Method | Solder |
