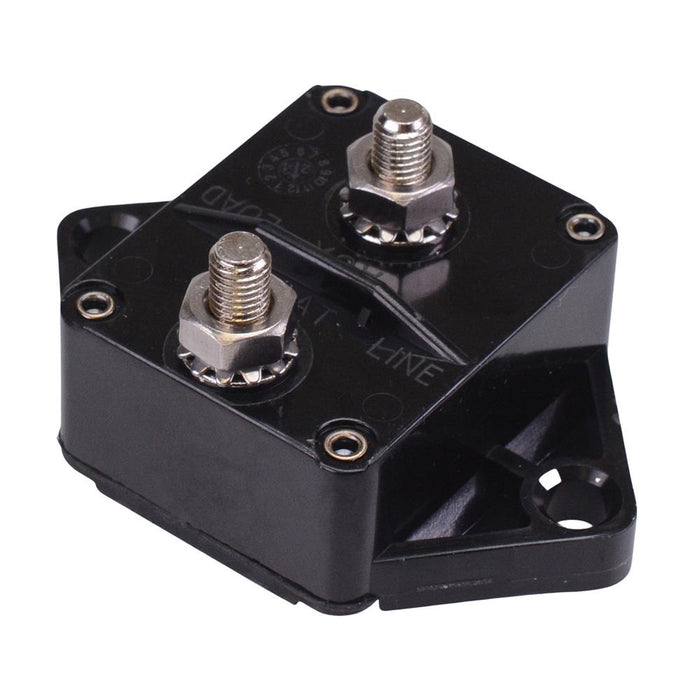

90A Panel Mount Auto Reset Circuit Breaker IP66
SKU 492945
MPN: 16-1P-090-P0K
Availability:
Out of stock
Sold out
Original price
£13.10
-
Original price
£13.10
Original price
£13.10
£13.10
-
£13.10
Current price
£13.10
90A panel mount circuit breaker featuring ignition protection and Auto reset. The circuit breaker features a 48VDC voltage rating and is IP66 protected, suitable for various automotive and marine applications.
Ignition protected Auto reset Voltage rating: 48VDC IP66 protection level Stud size: 1/4" Mounting holes: 6.5mm diameter Mounting hole pitch: 61.4mm Dimensions: 74.4 x 48.6 x 37.3mm (height x width x depth)
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 90A |
| Interrupting Capacity | 1500A |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Temperature | -30°C to +80°C |
| Voltage Rating | 48VDC |
