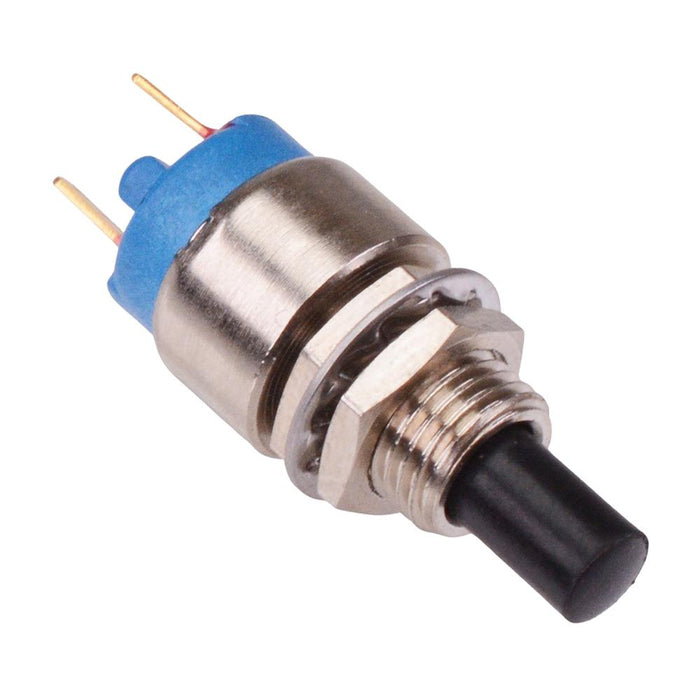

9433NCDB APEM Subminiature Momentary Normally Open Push Button Switch SPSTm
by APEM
SKU 488105
MPN: 9433NCDB
Back Order Availability: 10 Days
Availability:
43 in stock, ready to be shipped
Original price
£1.98
-
Original price
£1.98
Original price
£1.98
Inc VAT
£1.98
-
£1.98
Current price
£1.98
Inc VAT
The 9433NCDB is a momentary push button switch featuring 6.35mm threaded bush and SPST-NO contacts, manufactured by APEM. The switch features solder terminals and is suitable for a wide range of panel mount and PCB applications.
SPST-NO contacts Off-(On) function 6.35mm threaded bushing Gold plated brass terminals Solder PCB terminals Panel cut-out: 6.5mm Rating: 0.1A 30VDC Epoxy sealed terminals
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Gold Plated Brass |
| Contact rating | 0.1A 30VDC |
| Current rating | 0.1A |
| Electrical life | 250,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +65°C |
| Panel cut out | 6.5mm |
| Product series | 9400 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
