9632A3 APEM Subminiature Momentary On-(Off) Normally Closed Push Button Switch SPST
by APEM
SKU 487343
MPN: 9632A3
Availability:
60 in stock
Original price
£4.42
-
Original price
£4.42
Original price
£4.42
£4.42
£4.42
-
£4.42
Current price
£4.42

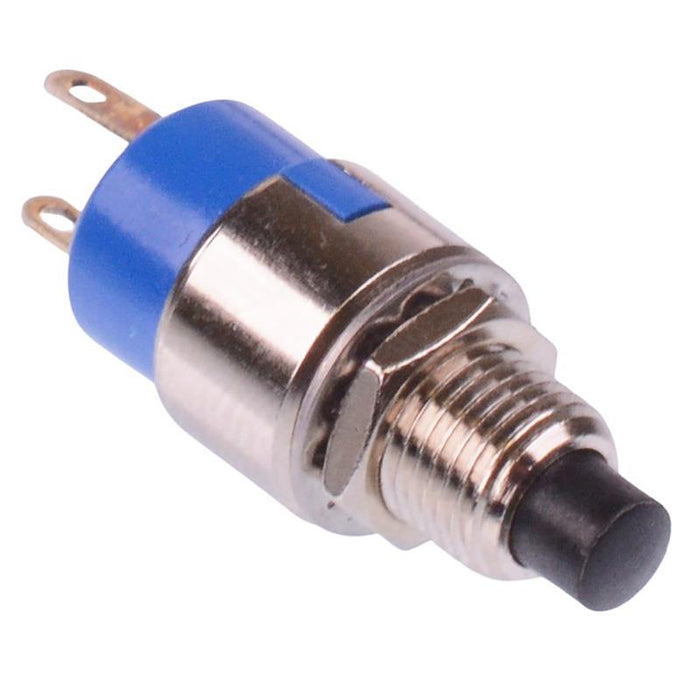

The 9632A3 is a subminiature momentary push button switch manufactured by APEM, with SPST contacts and 6.35mm bushing. The switch features solder terminals and is suitable for low power panel mount applications.
SPST-NC contacts 6.35mm threaded bushing Silver terminals Rating: 1A 30VDC Panel cut-out: 6.5mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 250,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6.5mm |
| Product Series | 9600 |
| Switch Operation | On-(Off) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
