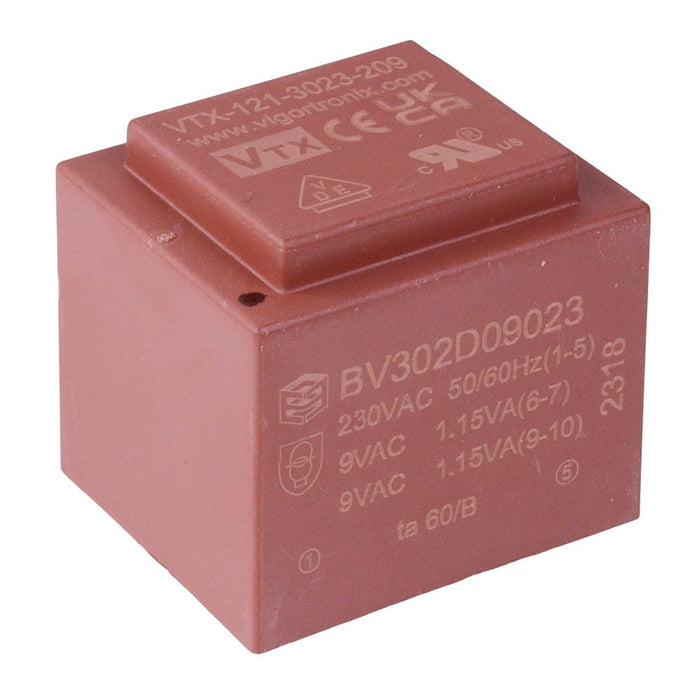

9V 2.3VA Encapsulated PCB Transformer 230V VTX-121-3023-209
by Vigortronix
SKU 486969
MPN: VTX-121-3023-209
Availability:
Only 3 left!
Original price
£2.88
-
Original price
£2.88
Original price
£2.88
£2.88
£2.88
-
£2.88
Current price
£2.88
9V high performance encapsulated PCB transformer manufactured by Vigortronix, featuring a single primary winding and 230V input voltage. The transformer features a 2.3VA power rating and is suitable for applications in rugged environments due to their construction and encapsulation.
230V input voltage 2 x 9V output voltage 2.3VA power rating 127mA output current Inherently Short-circuit proof Materials: UL94-V0 Manufactured and tested in accordance to EN61558, EN60950, CE UL, VDE and CE approved Dimensions: 32.6 x 27.6 x 27mm (length x width x height)
Specification
| Back Order Lead Time | 5 Days |
| Dielectric Strength | 4200Vrms |
| Height | 27mm |
| Length | 32.6mm |
| Maximum Ambient Temperature | 70°C |
| Output Current | 0.127A |
| Power | 2.3VA |
| Primary Voltage | 230V |
| Secondary Voltage | 2 x 9V |
| Weight | 100g |
| Width | 27.6mm |
