AB1M-A1LR Red 10mm Latching Round Push Button Switch IP40 SPDT
by IDEC
SKU 489902
MPN: AB1M-A1LR
Availability:
14 in stock
Original price
£8.90
-
Original price
£8.90
Original price
£8.90
£8.90
£8.90
-
£8.90
Current price
£8.90

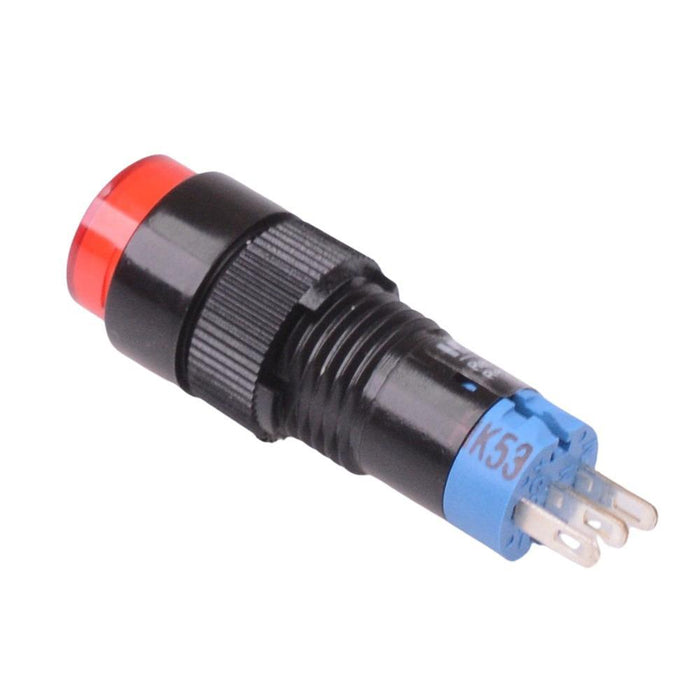

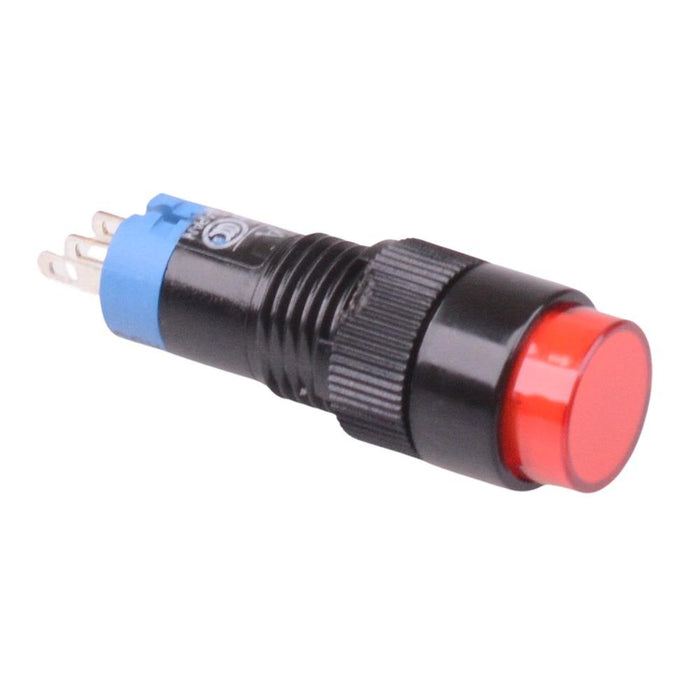

The AB1M-A1LR is a latching industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features a red lens and is suitable for 10mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Latching operation SPDT contacts IP40 protection rating Contact rating: 3A 250V Panel cut-out: 10mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 36.5 x 12mm (length x diameter)
Specification
| Actuation | Latching |
| Colour | Red |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Head Type | Round |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 10mm |
| Panel Thickness | 6mm |
| Product Series | A1 |
| Protection Level | IP40 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
