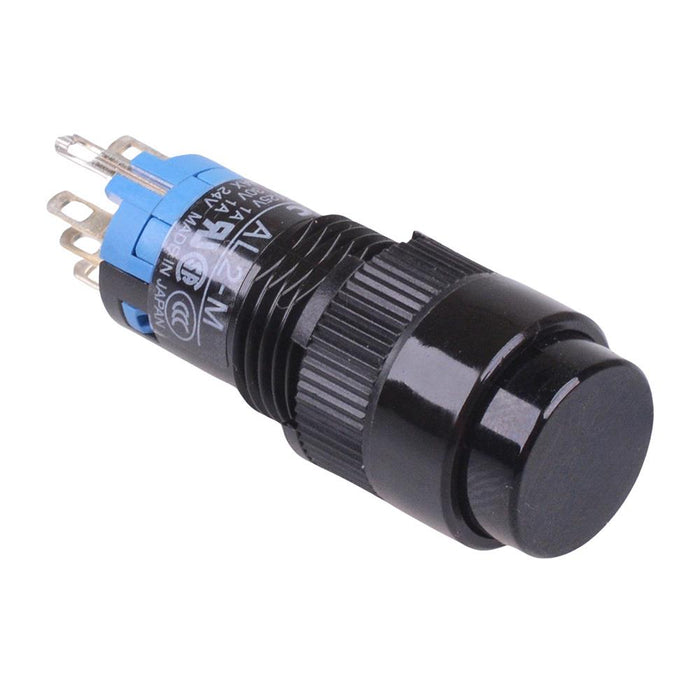

AB2M-A2PB Black 12mm Latching Round Push Button Switch IP65 DPDT
by IDEC
SKU 935238
MPN: AB2M-A2PB
Availability:
20 in stock
Original price
£16.07
-
Original price
£16.07
Original price
£16.07
£16.07
-
£16.07
Current price
£16.07
The AB2M-A2PB is a latching industrial push button switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a black button and is suitable for 12mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Latching operation DPDT contacts IP65 protection rating Contact rating: 3A 250V Panel cut-out: 12mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 36.5 x 14mm (length x diameter)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 196 Days |
| Colour | Black |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Head Type | Extended |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 6mm |
| Product Series | A2 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
