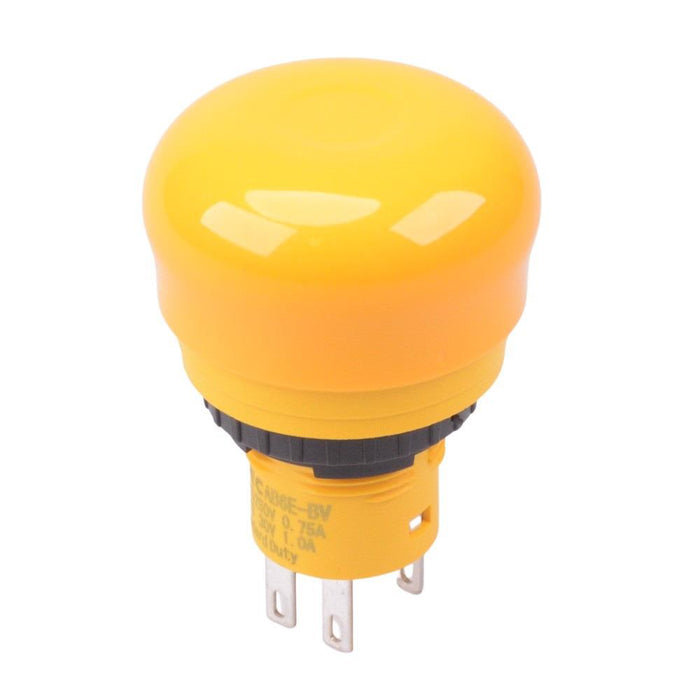

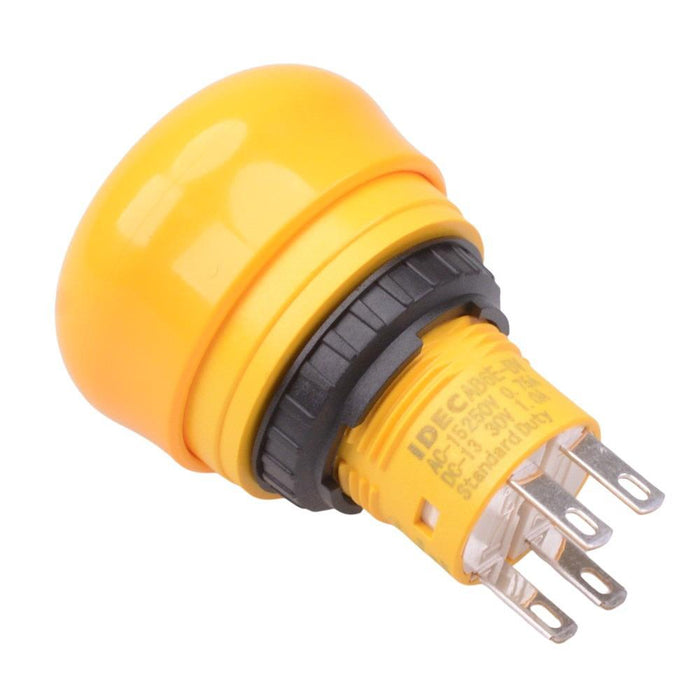

AB6E-3BV02PTY Yellow Unibody 16mm Emergency Stop Switch 30mm Mushroom 2NC IDEC

by IDEC
SKU 489904

MPN: AB6E-3BV02PTY

Availability:
24 in stock
Original price £20.27 - Original price £20.27
Original price
£20.27
£20.27 - £20.27
Current price £20.27
The AB6E-3BV02PTY is a 16mm E-stop switch manufactured by IDEC, featuring a 30mm mushroom head and 2NC contacts. The switch features IDEC's third generation reverse energy structure and the shortest behind panel depth in its class . The switch meets numerous certifications and features a smooth button making it suitable industrial applications requiring a sleek design.

  • Fail safe design
  • Contacts: 2NC
  • Rated current: 5A
  • Rated insulation voltage: 250V
  • Panel cut-out: 16.2mm
  • Panel thickness: 0.8-4.5mm
  • Behind panel depth: 23.9mm
  • Head diameter: 30mm
  • Solder/tab #110 terminals
  • UL, c-UL recognized, EN compliant
  • Specification
    Actuation Twist Release
    Colour Red
    Contact Configuration 2NC
    Current Rating 5A
    Electrical Life 100,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +60°C
    Panel Cut Out 16.2mm
    Product Series X6
    Protection Level IP65
    Terminal Type Quick Connect
    Voltage Rating 250V
