AB6E-4BV02PRH Unibody 16mm Emergency Stop Switch 40mm Mushroom 2NC IDEC

by IDEC
SKU 489905

MPN: AB6E-4BV02PRH

Availability:
50 in stock
Original price £20.41 - Original price £20.41
Original price
£20.41
£20.41 - £20.41
Current price £20.41

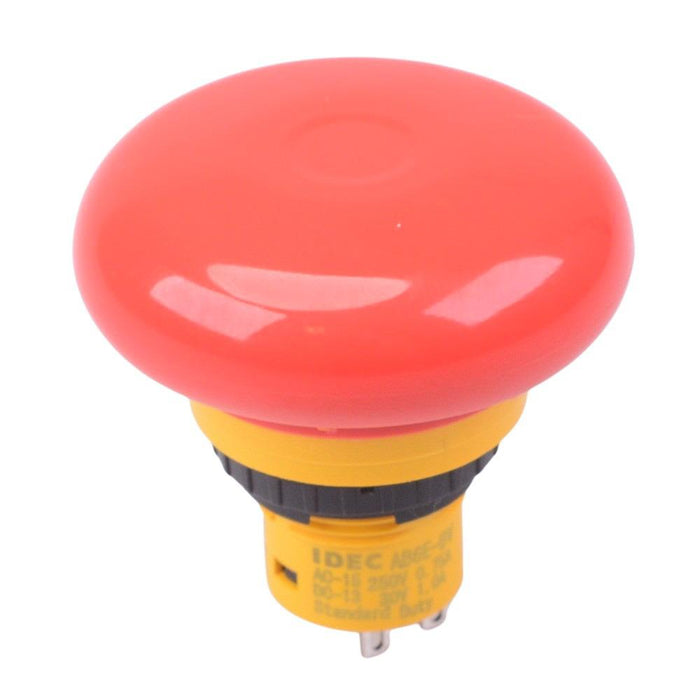

The AB6E-4BV02PRH is a 16mm E-stop switch manufactured by IDEC, featuring a 30mm mushroom head and 2NC contacts. The switch features IDEC's third generation reverse energy structure and the shortest behind panel depth in its class . The switch meets numerous certifications and features a smooth button making it suitable applications including food processing machines, semiconductor manufacturing equipment and other applications requiring a sleek design of emergency stop switch.

  • Fail safe design
  • Contacts: 2NC
  • Rated current: 5A
  • Rated insulation voltage: 250V
  • Panel cut-out: 16.2mm
  • Panel thickness: 0.8-4.5mm
  • Behind panel depth: 19.5mm
  • Head diameter: 40mm
  • Solder terminals
  • UL, c-UL recognized, EN compliant
  • Specification
    Actuation Twist Release
    Colour Red
    Contact Configuration 2NC
    Current Rating 5A
    Electrical Life 100,000 Cycles
    Head Type Mushroom
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +60°C
    Panel Cut Out 16.2mm
    Product Series X6
    Protection Level IP65
    Terminal Type Solder
    Voltage Rating 250V
