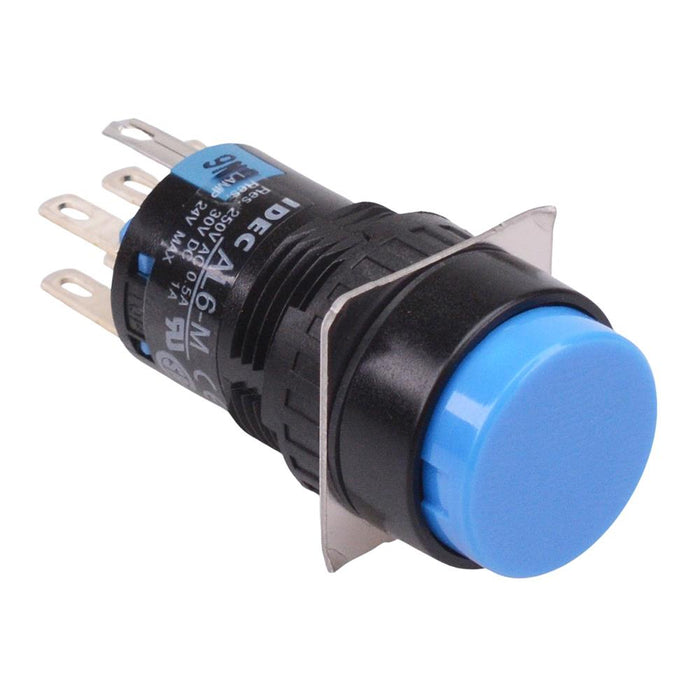

AB6M-M2PSC Blue 16mm Momentary Round Push Button Switch IP65 DPDT
by IDEC
SKU 936201
MPN: AB6M-M2PSC
Availability:
10 in stock
Original price
£13.36
-
Original price
£13.36
Original price
£13.36
£13.36
-
£13.36
Current price
£13.36
The AB6M-M2PSC is a momentary light duty industrial push button switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.
Momentary operation DPDT contacts IP65 protection rating Blue button Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm Solder/quick connect 2.8*0.5mm terminals Dimensions: 39 x 18mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 196 Days |
| Colour | Blue |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
