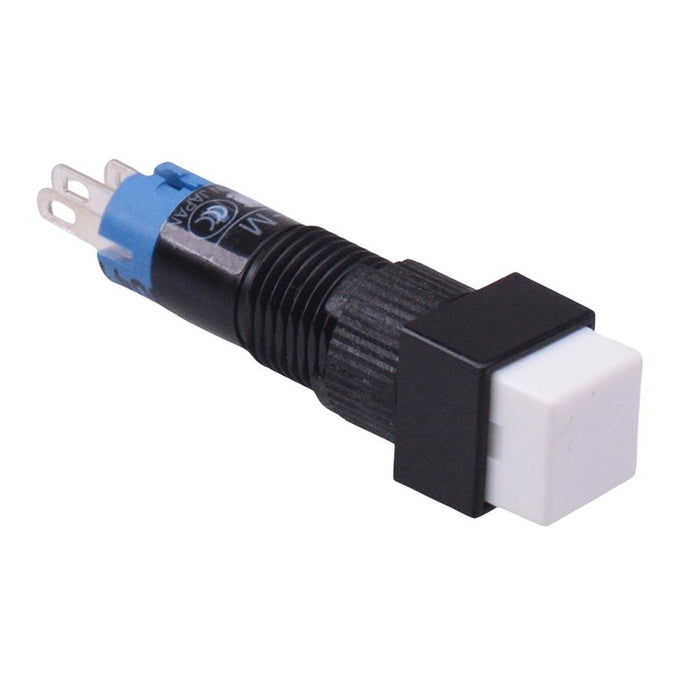

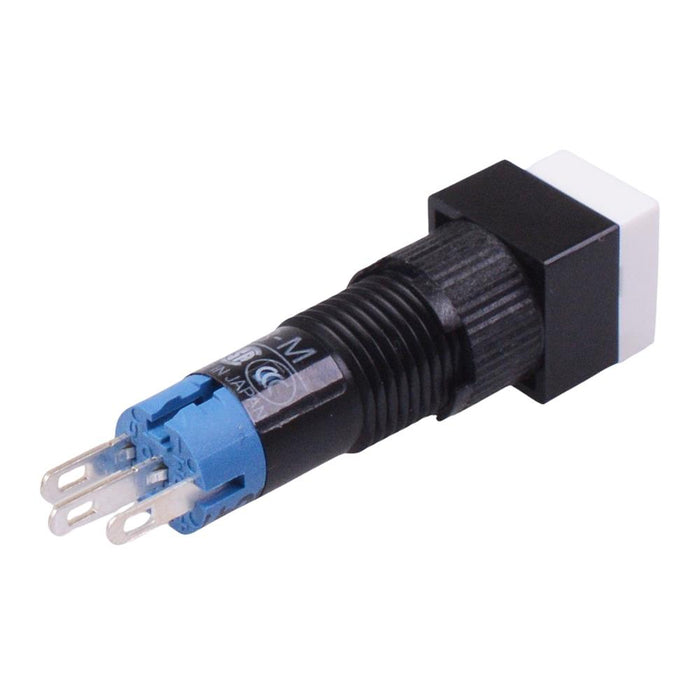

AB8Q-M1W White 8mm Momentary Square Push Button Switch SPDT
by IDEC
SKU 493157
MPN: AB8Q-M1W
Availability:
10 in stock
Original price
£9.30
-
Original price
£9.30
Original price
£9.30
£9.30
-
£9.30
Current price
£9.30
The AB8Q-M1W is a white momentary industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Momentary operation SPDT contacts IP40 protection rating Contact rating: 3A 250V Panel cut-out: 8mm Panel thickness: 0.5 to 6mm Solder terminals Dimensions: 38 x 9 x 9mm (length x width x length)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 126 Days |
| Colour | White |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 0.5-6mm |
| Product Series | A8 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
