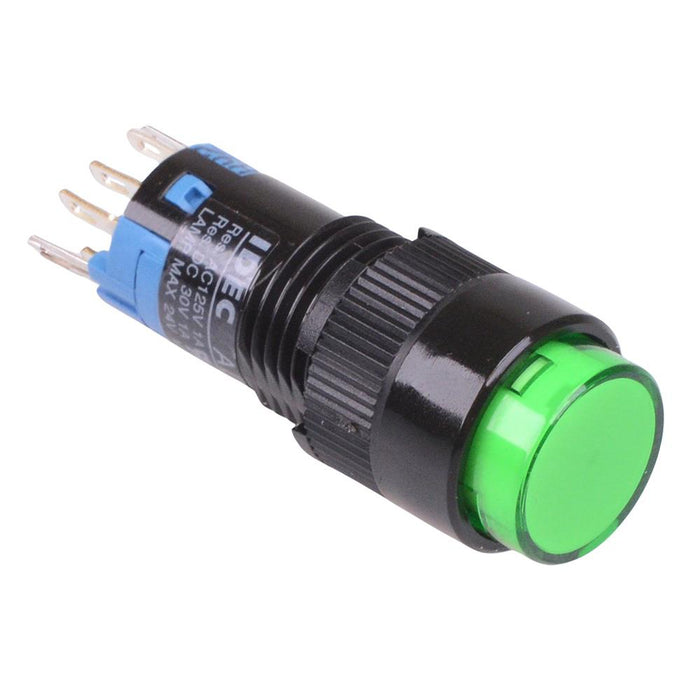

AL2M-M21PG Green 12mm Momentary Round illuminated Push Button Switch IP65 DPDT
by IDEC
SKU 935225
MPN: AL2M-M21PG
Availability:
Only 4 left!
Original price
£17.21
-
Original price
£17.21
Original price
£17.21
£17.21
-
£17.21
Current price
£17.21
The AL2M-M21PG is a momentary industrial push button switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features green LED illumination and is suitable for 12mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Momentary operation DPDT contacts IP65 protection rating Green 2.9V illumination Contact rating: 3A 250V Panel cut-out: 12mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 36.5 x 14mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 196 Days |
| Colour | Green |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 2.9VDC |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 6mm |
| Product Series | A2 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
