AL2M-P1PA Amber 12mm Round Pilot Light IP65 IDEC
by IDEC
SKU 935232
MPN: AL2M-P1PA
Availability:
Out of stock
Sold out
Original price
£12.77
-
Original price
£12.77
Original price
£12.77
£12.77
-
£12.77
Current price
£12.77

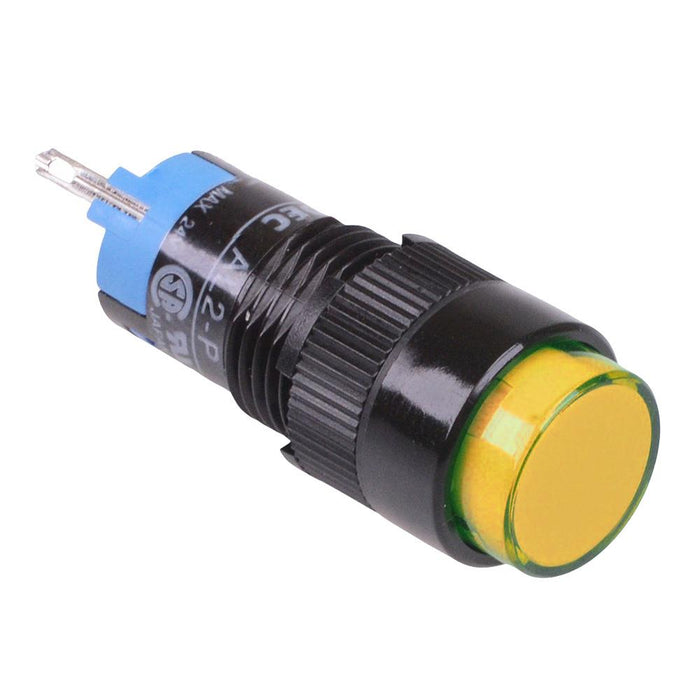

The AL2M-P1PA is a amber indicator light manufactured by IDEC, featuring 2V LED illumination and round body. The pilot light is designed for 12mm panel cut-outs and is suitable for use in a wide range of control panels.
Amber LED Forward voltage: 2V Rated current: 20mA Panel cut-out: 12mm Protection rating: IP65 Solder terminals Dimensions: 36.5 x 14mm (length x diameter)
Specification
| Back Order Lead Time | 196 Days |
| Colour | Amber |
| Diameter | 14mm |
| Forward Current | 20mA |
| Height | 38mm |
| Lamp Type | LED |
| Length | 38mm |
| Life Expectancy | 50,000 Hours |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 0.5-6mm |
| Protection Level | IP65 |
| Voltage Rating | 2VDC |
