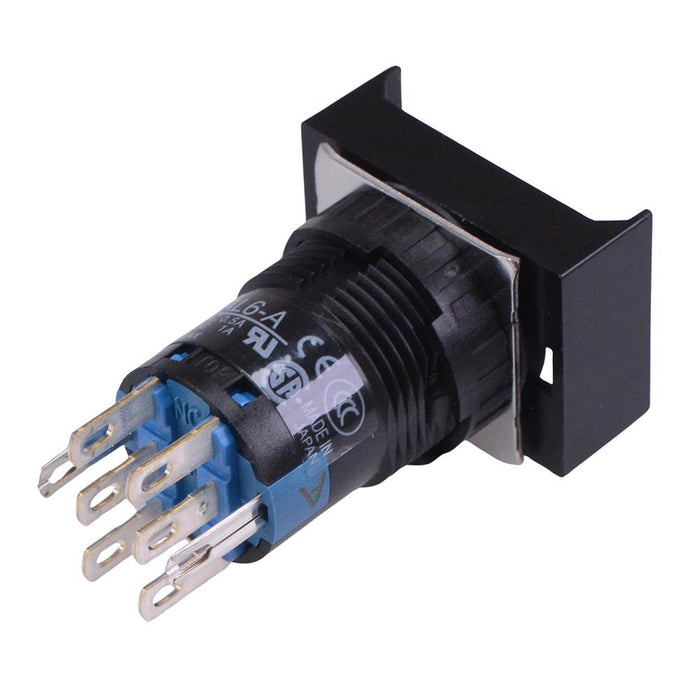

AL6H-A200 16mm Latching Rectangular illuminated Push Button Body DPDT IDEC
by IDEC
SKU 491265
MPN: AL6H-A200
Availability:
20 in stock
Original price
£11.83
-
Original price
£11.83
Original price
£11.83
£12.42
£12.42
-
£12.42
Current price
£12.42
The AL6H-A200 is a latching rectangle push button body featuring DPDT contacts and 16mm panel cut-out. The body is from the IDEC A6 series and requires a compatible lens and LED lamp. The body features solder terminals and is suitable for 0.5mm to 6mm panel thickness.
Specification
| Actuation | Latching |
| Back Order Lead Time | 180 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
