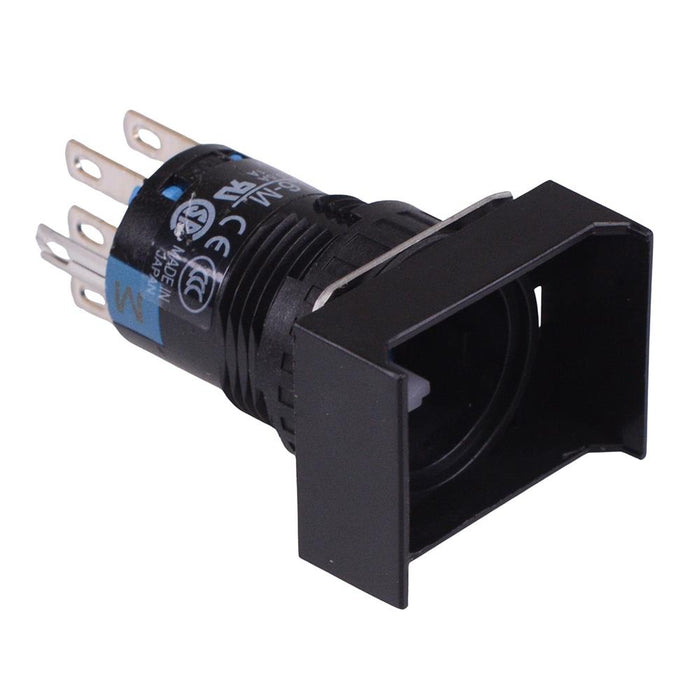

AL6H-M200 16mm Momentary Rectangular illuminated Push Button Body DPDT IDEC
by IDEC
SKU 491264
MPN: AL6H-M200
Availability:
Out of stock
Sold out
Original price
£11.03
-
Original price
£11.03
Original price
£11.03
£11.58
£11.58
-
£11.58
Current price
£11.58
The AL6H-M200 is a momentary rectangle push button body featuring DPDT contacts and 16mm panel cut-out. The body is from the IDEC A6 series and requires a compatible lens and LED lamp. The body features solder terminals and is suitable for 0.5mm to 6mm panel thickness.
Specification
| Actuation | Momentary |
| Back Order Lead Time | 180 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
