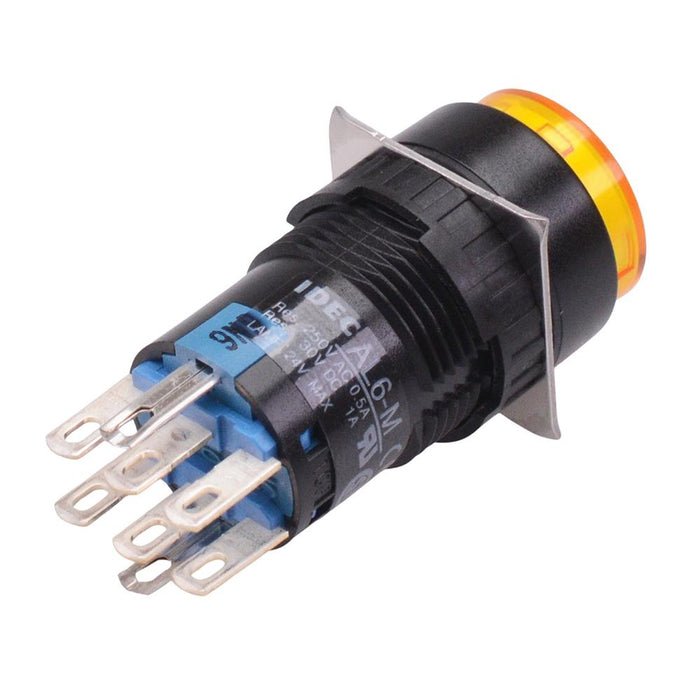

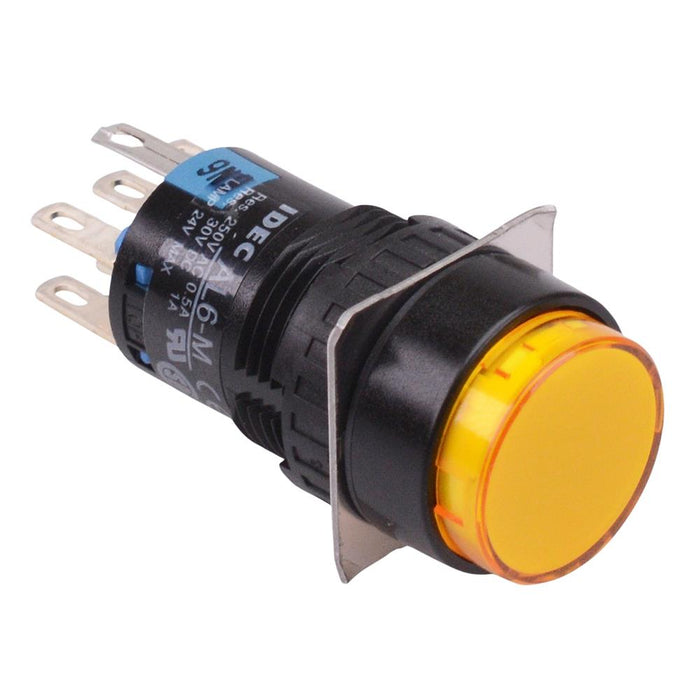

AL6M-A21PY Yellow 16mm 5VDC Latching Round illuminated Push Button Switch IP65 DPDT
by IDEC
SKU 936184
MPN: AL6M-A21PY
Availability:
10 in stock
Original price
£24.18
-
Original price
£24.18
Original price
£24.18
£24.18
-
£24.18
Current price
£24.18
The AL6M-A21PY is a latching industrial push button switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features yellow LED illumination and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Latching operation DPDT contacts IP65 protection rating Yellow 5VDC illumination Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm Solder/tab 2.8*0.5mm terminals Dimensions: 39 x 18mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 196 Days |
| Colour | Yellow |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 5VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
