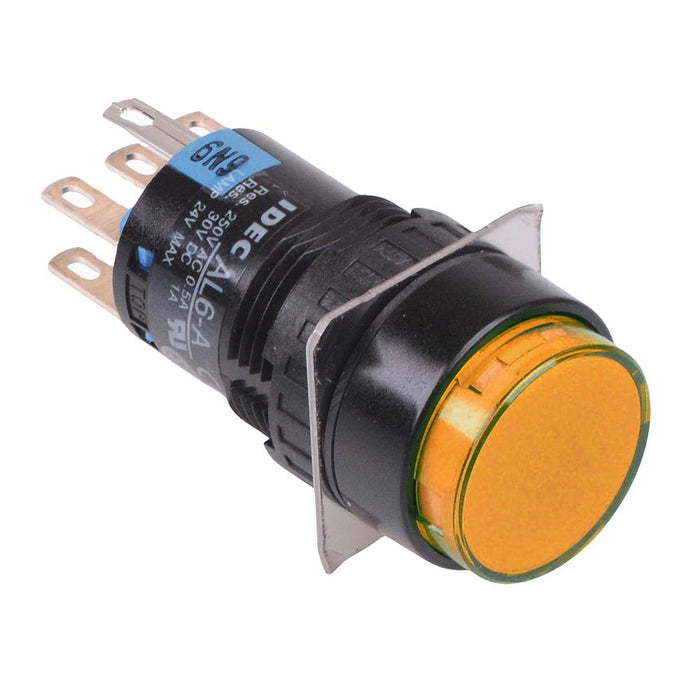

AL6M-A24PA Amber 16mm 24V Latching Round illuminated Push Button Switch IP65 DPDT
by IDEC
SKU 935256
MPN: AL6M-A24PA
Availability:
Out of stock
Sold out
Original price
£21.10
-
Original price
£21.10
Original price
£21.10
£21.10
-
£21.10
Current price
£21.10
The AL6M-A24PA is a latching industrial push button switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features amber LED illumination and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Latching operation DPDT contacts IP65 protection rating Amber 24VAC/DC illumination Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 39 x 18mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 196 Days |
| Colour | Amber |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Head Type | Extended |
| Illuminated | Yes |
| Illumination Colour | Amber |
| Illumination Voltage | 24V |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
