AL6M-P1PY Yellow 16mm 5VDC Round Pilot Light IP65 IDEC
by IDEC
SKU 936193
MPN: AL6M-P1PY
Availability:
10 in stock
Original price
£15.27
-
Original price
£15.27
Original price
£15.27
£15.27
-
£15.27
Current price
£15.27

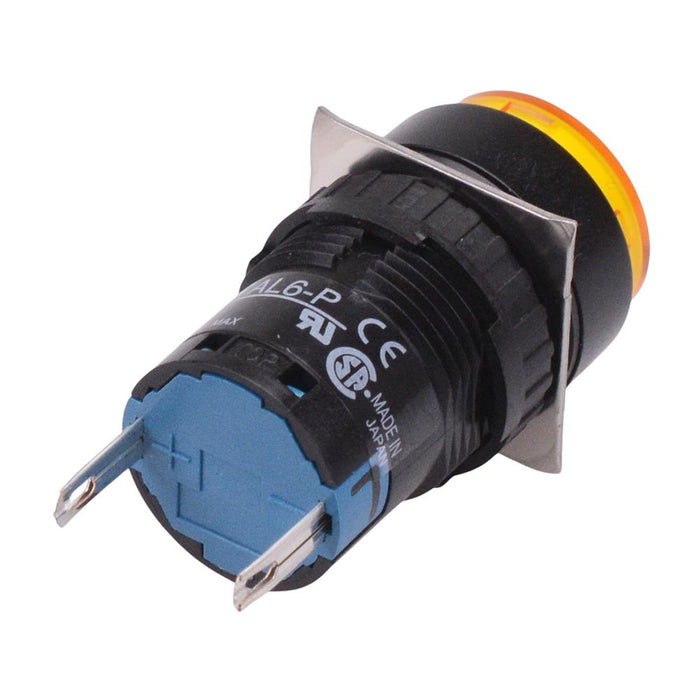

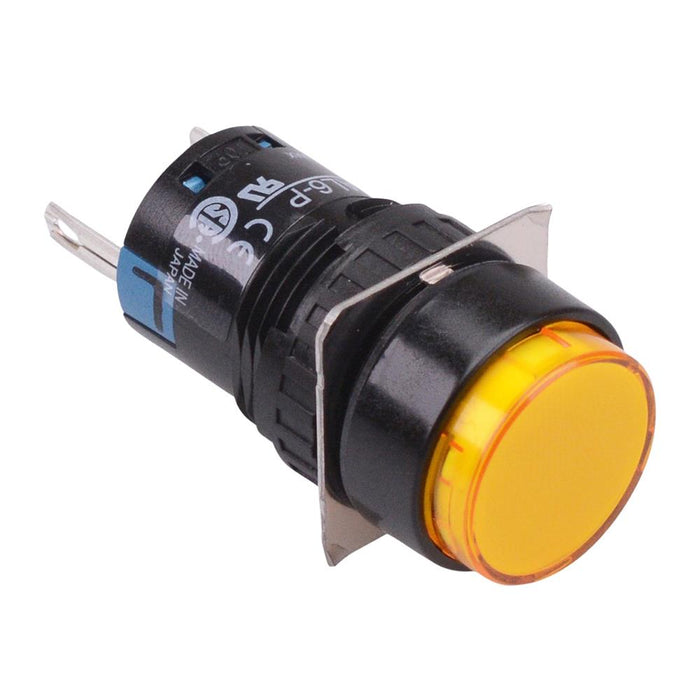

The AL6M-P1PY is a yellow indicator light manufactured by IDEC, featuring 5V LED illumination and round body. The pilot light is designed for 16mm panel cut-outs and is suitable for use in a wide range of control panels.
Yellow LED Forward voltage: 5VDC Rated current: 5mA Panel cut-out: 16.2mm Protection rating: IP65 Solder terminals Dimensions: 39 x 18mm (length x diameter)
Specification
| Back Order Lead Time | 196 Days |
| Colour | Yellow |
| Diameter | 18mm |
| Forward Current | 5mA |
| Height | 39mm |
| Lamp Type | LED |
| Life Expectancy | 50,000 Hours |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 0.5-6mm |
| Protection Level | IP65 |
| Voltage Rating | 5VDC |
