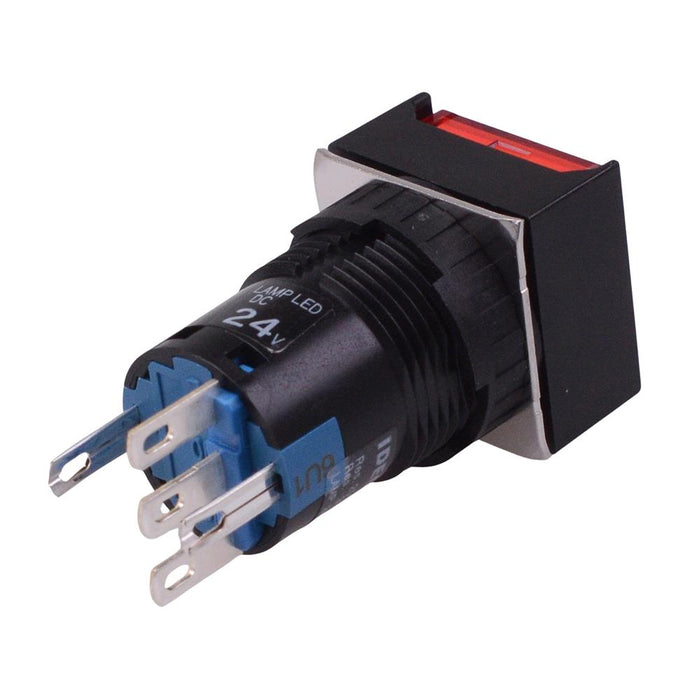

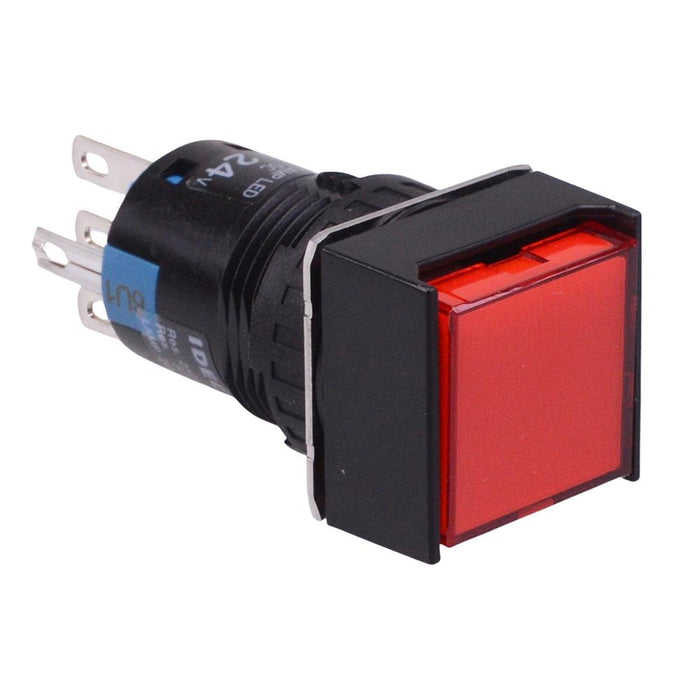

AL6Q-M14R Red 16mm 24V Momentary Square illuminated Push Button Switch SPDT
by IDEC
SKU 493165
MPN: AL6Q-M14R
Availability:
10 in stock
Original price
£16.68
-
Original price
£16.68
Original price
£16.68
£16.68
-
£16.68
Current price
£16.68
The AL6Q-M14R is a momentary industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features red LED illumination and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
- Momentary operation
- SPDT contacts
- IP40 protection rating
- Red 24VDC illumination
- Contact rating: 3A 250V
- Panel cut-out: 16.2mm
- Panel thickness: 0.5-6mm
- Solder/tab 2.8*0.5mm terminals
- Dimensions: 39 x 18 x 18mm (height x length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 126 Days |
| Colour | Red |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 0.5-6mm |
| Product Series | A6 |
| Protection Level | IP40 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
