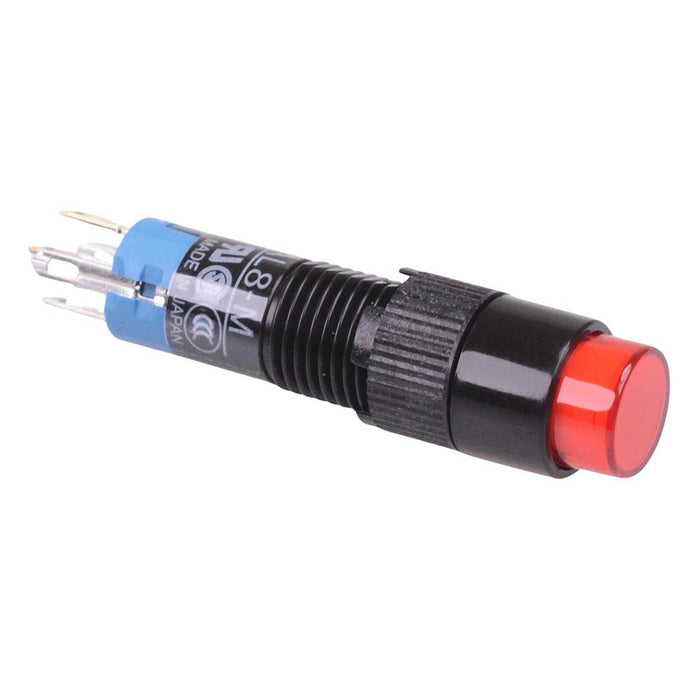

AL8M-A11R Red 8mm illuminated Latching Round Push Button 8mm SPDT
by IDEC
SKU 489083
MPN: AL8M-A11R
Availability:
Out of stock
Sold out
Original price
£10.69
-
Original price
£10.69
Original price
£10.69
£12.13
£12.13
-
£12.13
Current price
£12.13
The AL8M-A11R is a latching industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features red LED illumination and is suitable for 8mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
latching operation SPDT contacts IP40 protection rating Red 2V illumination Contact rating: 3A 250V Panel cut-out: 8mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 38 x 9mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 196 Days |
| Colour | Red |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Head Type | Extended |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 2VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 6mm |
| Product Series | A8 |
| Protection Level | IP40 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
