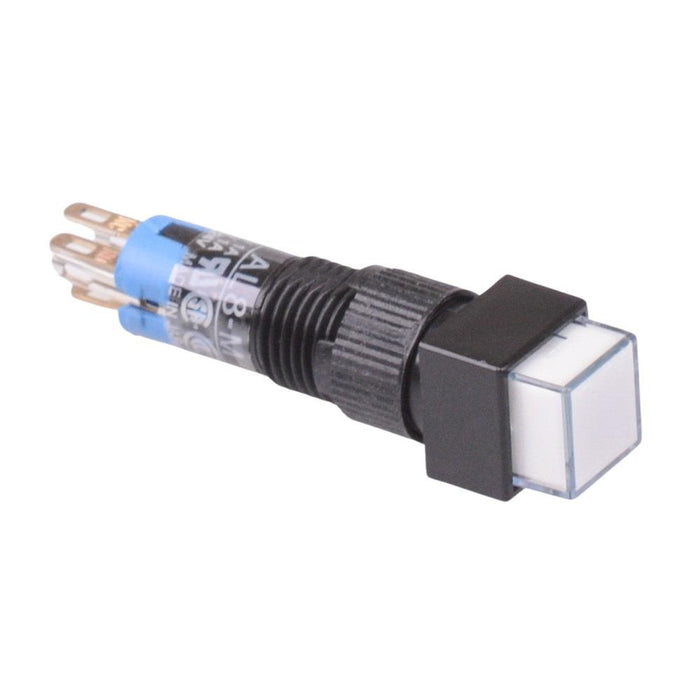

AL8Q-M11W White 8mm illuminated Momentary Square Push Button Switch SPDT
by IDEC
SKU 489907
MPN: AL8Q-M11W
Availability:
Out of stock
Sold out
Original price
£8.99
-
Original price
£8.99
Original price
£8.99
£10.20
£10.20
-
£10.20
Current price
£10.20
The AL8Q-M11W is a momentary industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features white LED illumination and is suitable for 8mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Momentary operation SPDT contacts IP40 protection rating White 2.7V illumination Contact rating: 3A 250V Panel cut-out: 8mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 38 x 9 x 9mm (height x width x length)
Specification
| Actuation | Momentary |
| Colour | White |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Head Type | Round |
| Illuminated | Yes |
| Illumination Voltage | 2.7V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 6mm |
| Product Series | A8 |
| Protection Level | IP40 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
