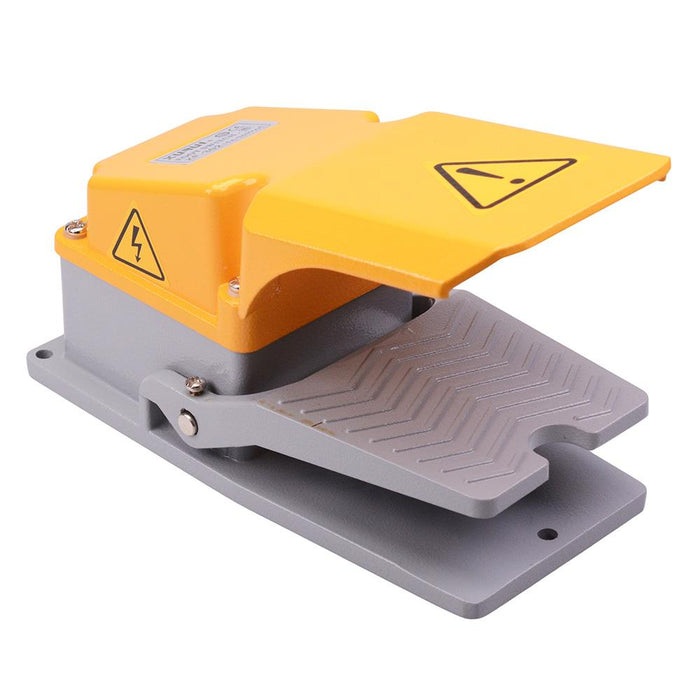

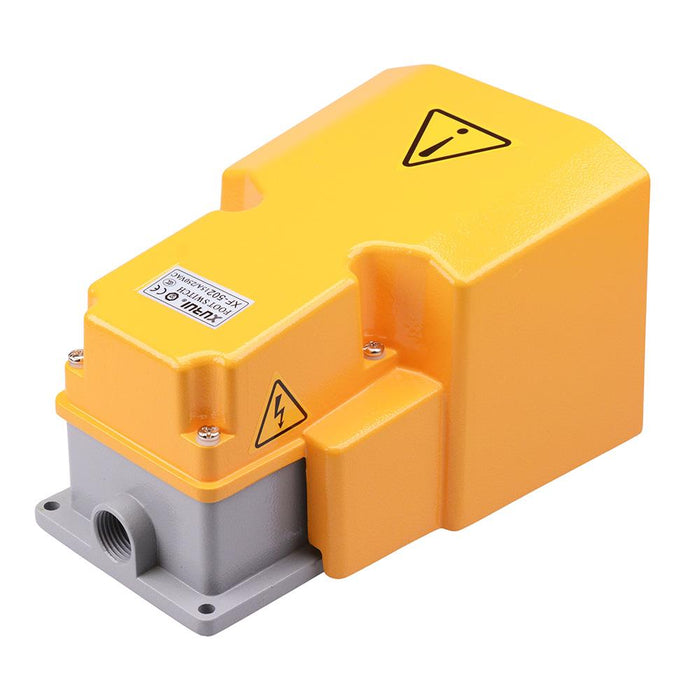

Aluminium Foot Switch W/Guard SPDT IP65 15A 250VAC
SKU 489600
MPN: XF-302
Availability:
12 in stock
Original price
£19.41
-
Original price
£19.41
Original price
£19.41
£19.41
-
£19.41
Current price
£19.41
Aluminium foot switch featuring changeover SPDT contacts and momentary switch function. The switch features a yellow guard and IP65 protection rating. The switch is suitable for use with industrial automation equipment, transport test and various other applications.
NO / NC contacts Rating: 15A 250VAC Housing material: Aluminium Protection rating: IP65 Dimensions: 198 x 98 x 127mm (Length x Width x Height)
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Material | Aluminium |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +70°C |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
