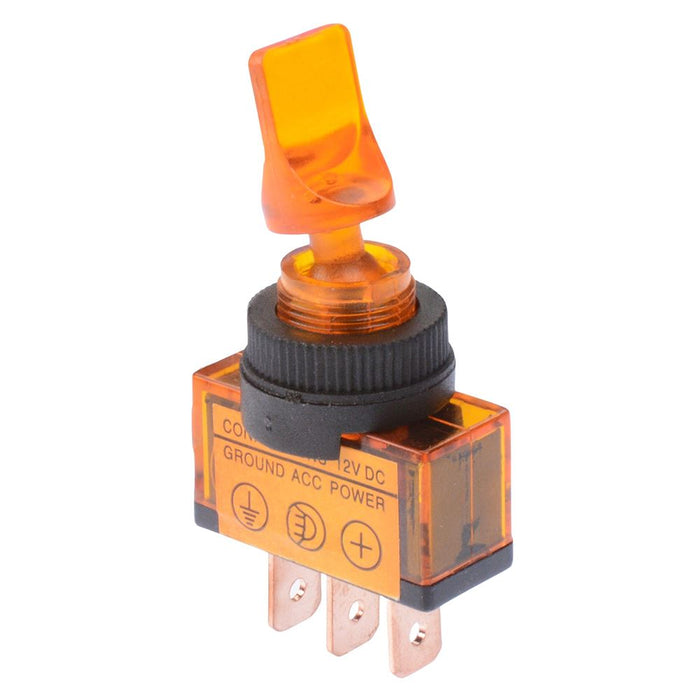

Amber 12V illuminated On-Off Toggle Switch SPST 20A
SKU 486937
MPN: 486937
Availability:
296 in stock
Original price
£1.07
-
Original price
£1.07
Original price
£1.07
Inc VAT
£1.07
-
£1.07
Current price
£1.07
Inc VAT
Amber illuminated toggle switch featuring SPST contacts and On-Off operation. The switch requires a 12mm panel cut-out and is suitable for 12V applications including automotive.
Amber 12V illumination On-Off operation SPST contacts Rating: 20A 12V 6.35mm quick connect terminals Panel cut-out: 12mm Dimensions: 54 x 26.2 x 12mm (height x length x width)
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Amber |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Amber |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
