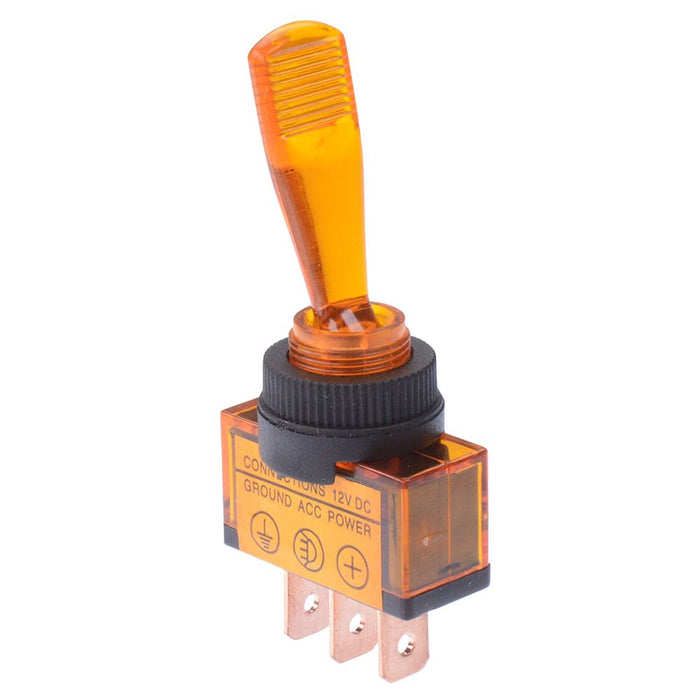

Amber LED On-Off Paddle Toggle Switch SPST 20A 12V

SKU 486942

MPN: 486942

299 in stock, ready to be shipped
Original price £1.04 - Original price £1.04
Original price
£1.04 Inc VAT
£1.04 - £1.04
Current price £1.04 Inc VAT
On-Off toggle switch featuring a paddle style handle and amber illumination. The switch is rated up to 20A and requires 12V making it suitable for automotive applications.

  • Amber 12V illumination
  • SPST contacts
  • 12mm panel cut-out
  • Rating: 20A 12VDC
  • 6.35mm quick connect terminals
  • Dimensions: 62 x 26.2 x 12mm (height x length x width)
  • Specification
    Actuation Latching
    Colour Amber
    Contact configuration SPST
    Contact rating 20A 12VDC
    Current rating 20A @ 12VDC
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Amber
    Illumination voltage 12VDC
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 12VDC
