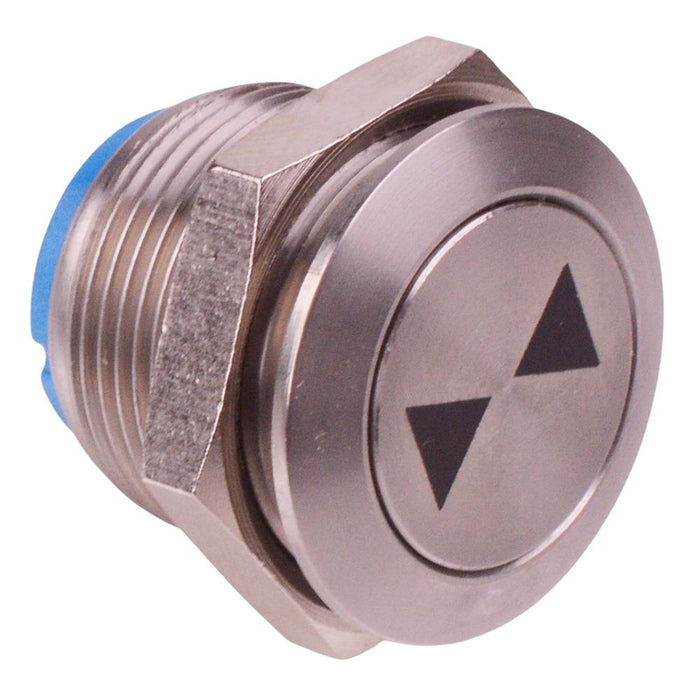

APEM Inward Arrows Off-(On) Momentary 19mm Flat Anti Vandal Push Button Switch SPST
by APEM
SKU 487701
MPN: AV09CARROWSIN
Availability:
17 in stock, ready to be shipped
Original price
£14.05
-
Original price
£14.05
Original price
£14.05
Inc VAT
£14.05
-
£14.05
Current price
£14.05
Inc VAT
The AV09 is a 19mm anti vandal push button switch with momentary SPST-NO contacts and flat actuator. The switch features a stainless steel body and solder terminals making it suitable for applications requiring a reliable long-lasting switch including security and door entry.
SPST-NO contacts Off-(On) momentary function Panel cut-out: 19.2mm Solder terminals Rating: 4A 12VDC Panel thickness: 1-11mm Material: stainless steel
Specification
| Actuation | Momentary |
| Contact configuration | SPST |
| Contact rating | 4A 12VDC |
| Current rating | 4A |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to 70°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-11mm |
| Product series | AV |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 12VDC |
