APEM On-Off 12mm Toggle Switch SPST 6A
by APEM
SKU 487934
MPN: 831 RS
Availability:
46 in stock
Original price
£5.14
-
Original price
£5.14
Original price
£5.14
£5.40
£5.40
-
£5.40
Current price
£5.40

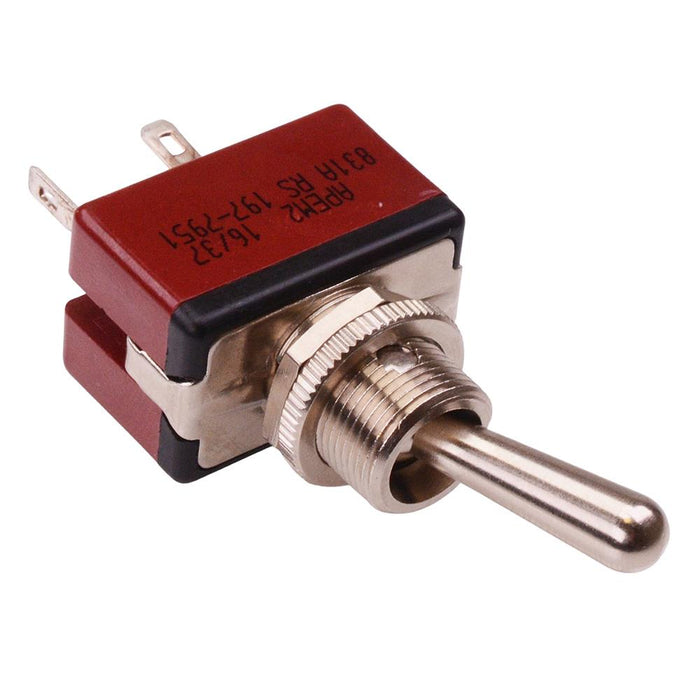

Off-On latching toggle switch by APEM featuring a 12mm bushing and SPST contacts. The switch features solder terminals and is suitable for a wide range of panel mount applications.
On-Off function SPST contacts Panel cut-out: 12mm Solder terminals Rating: 3A 250VAC, 6A 125VAC, 6A 30VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 6A 30VDC |
| Current Rating | 6A |
| Electrical Life | 20,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 5mm |
| Product Series | 500 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC / 30VDC |
