APEM Outward Arrows Off-(On) Momentary 19mm Flat Anti Vandal Push Button Switch SPST
by APEM
SKU 487594
MPN: AV09CARROWSOUT
Availability:
23 in stock
Original price
£18.60
-
Original price
£18.60
Original price
£18.60
£18.60
-
£18.60
Current price
£18.60

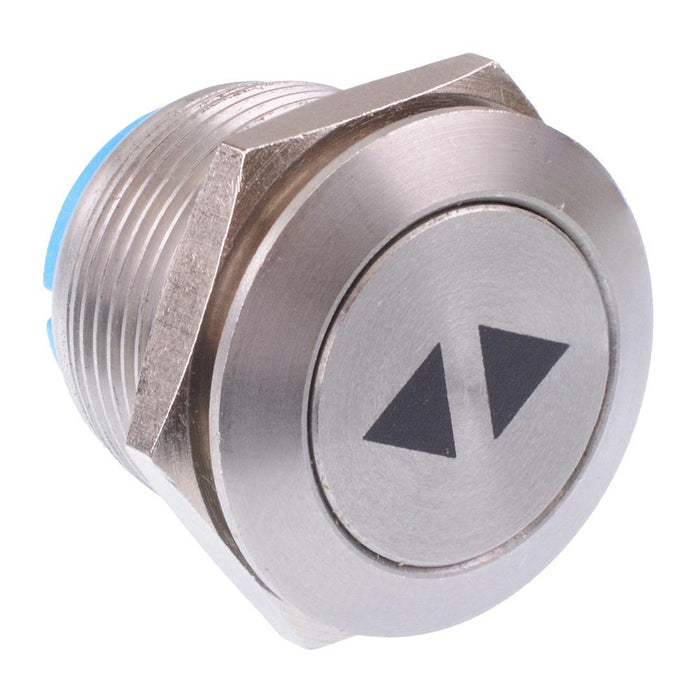

The AV09 is a 19mm anti vandal push button switch with momentary SPST-NO contacts and flat actuator. The switch features a stainless steel body and solder terminals making it suitable for applications requiring a reliable long-lasting switch including security and door entry.
SPST-NO contacts Off-(On) momentary function Panel cut-out: 19.2mm Solder terminals Rating: 4A 12VDC Panel thickness: 1-11mm Material: stainless steel
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 4A 12VDC |
| Current Rating | 4A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
