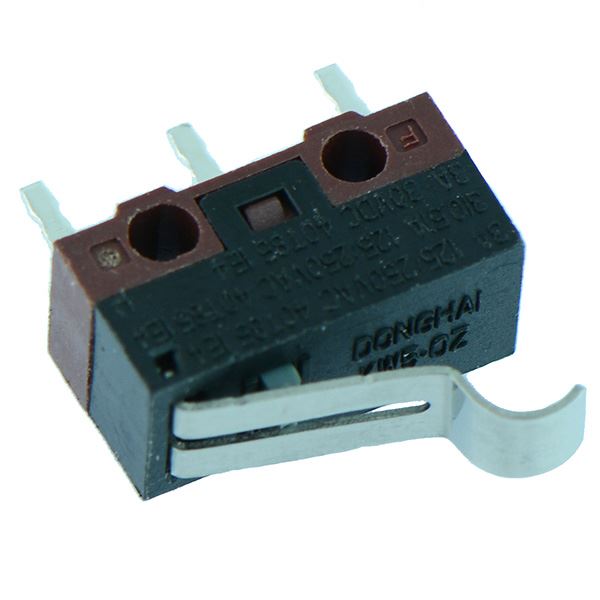

Arc Lever Subminiature PCB Microswitch SPDT 3A
SKU 481695
MPN: 481695
Availability:
767 in stock
Original price
£0.42
-
Original price
£0.42
Original price
£0.42
Inc VAT
£0.42
-
£0.42
Current price
£0.42
Inc VAT
Subminiature microswitch featuring an arc lever actuator housed in a compact package capable of switching up to 3A. The switch features solder terminals and is suitable for PCB applications.
Arc lever actuator Rating: 3A 250VAC NO / NC contacts Solder PCB terminals Operating force: 100gf Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
Specification
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Number of positions | 2 |
| Operating force | 100gf Max |
| Pitch | 5.1mm |
| Terminal type | Through Hole |
| Voltage rating | 250VAC |
