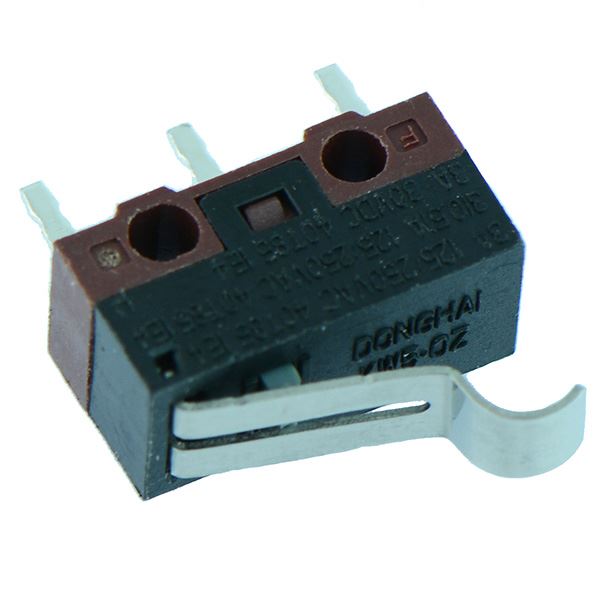

Arc Lever Subminiature PCB Microswitch SPDT 3A
SKU 481695
MPN: 481695
Availability:
145 in stock
Original price
£0.47
-
Original price
£0.47
Original price
£0.47
£0.53
£0.53
-
£0.53
Current price
£0.53
Subminiature microswitch featuring an arc lever actuator housed in a compact package capable of switching up to 3A. The switch features solder terminals and is suitable for PCB applications.
Arc lever actuator Rating: 3A 250VAC NO / NC contacts Solder PCB terminals Operating force: 100gf Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Number of Positions | 2 |
| Operating Force | 100gf Max |
| Pitch | 5.1mm |
| Terminal Type | Through Hole |
| Voltage Rating | 250VAC |
