Arduino® Due

by Arduino
SKU 490722

MPN: A000062

Availability:
Out of stock
Sold out
Original price £41.50 - Original price £41.50
Original price
£41.50
£41.50 - £41.50
Current price £41.50

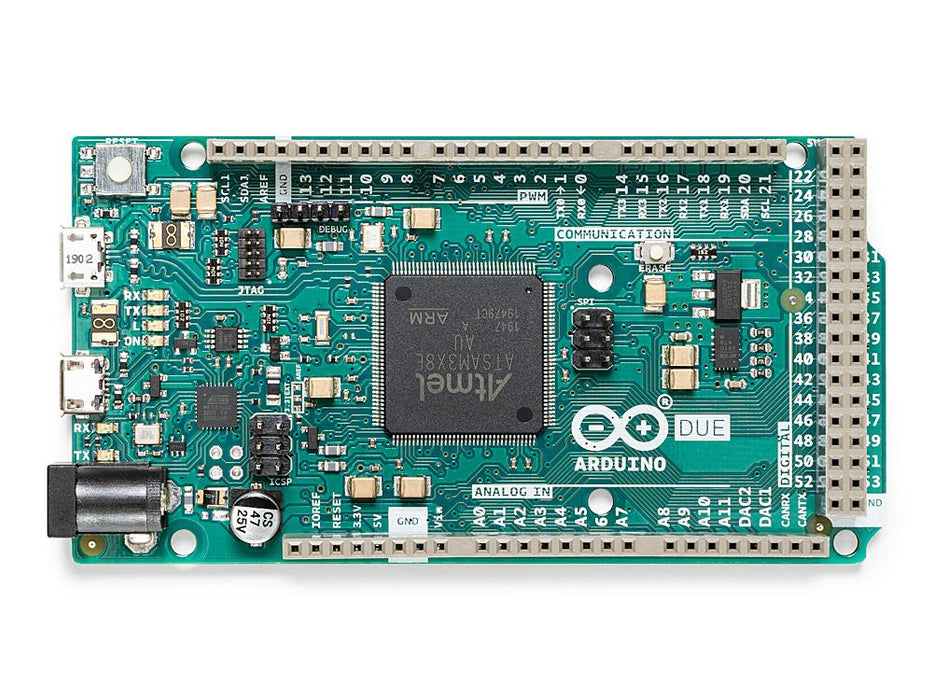

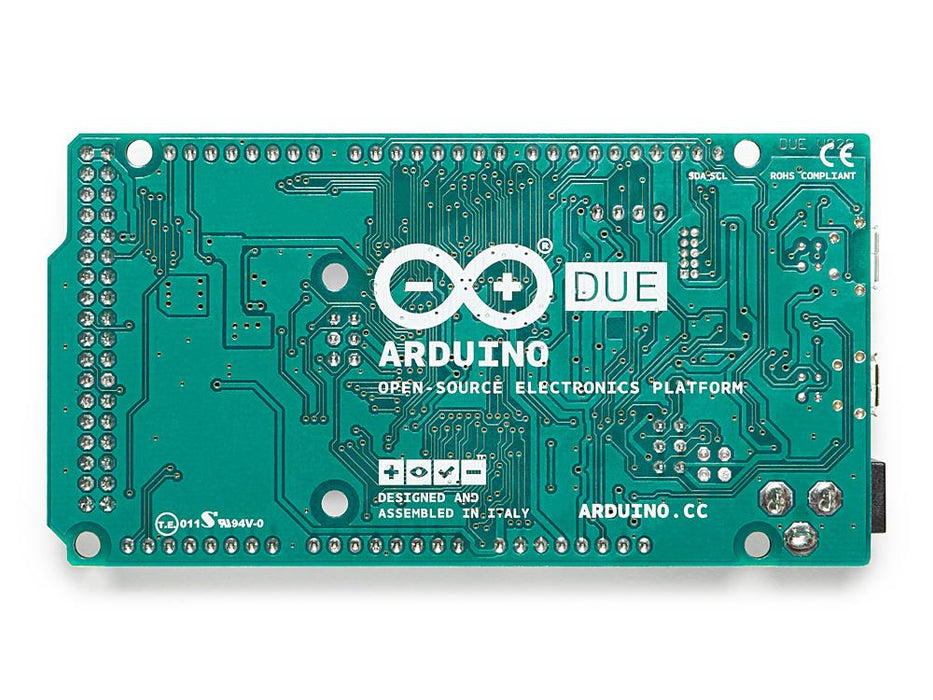

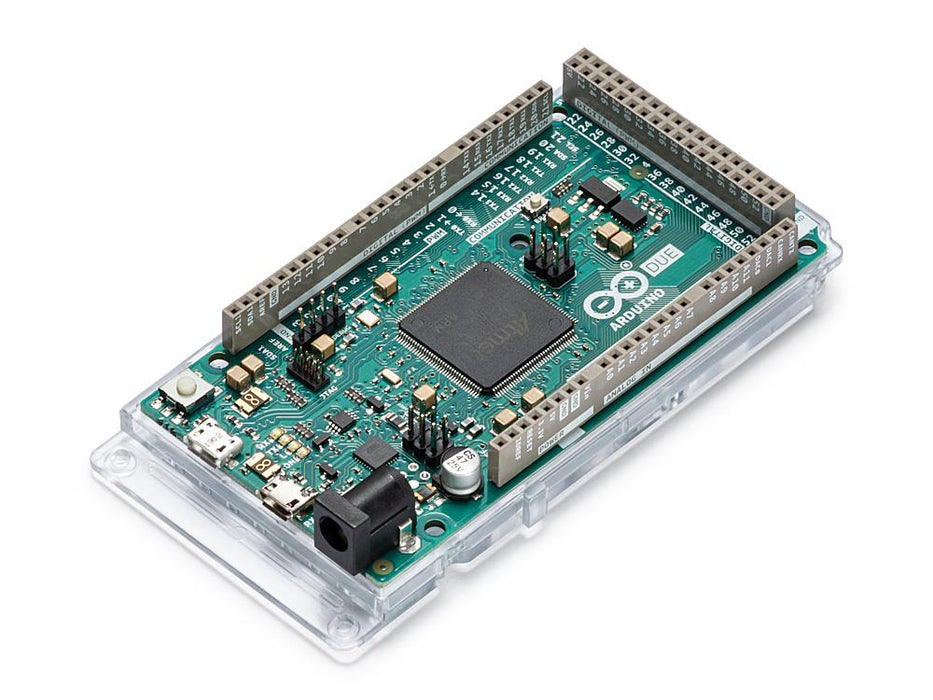

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It also features 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout. Features pins with IOREF, which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V. Warning: Unlike most Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.

  • Powerful ARM Cortex-M3
  • Supports complex applications
  • 84MHz processing speed
  • 54 digital I/O pins
  • High memory capacity
  • Specification
    Analog Inputs 12
    Analog Outputs 2 (DAC)
    Clock Speed 84 MHz
    DC Current for Pin 800 mA (3.3V + 5V)
    Digital I/O Pins 54 (12 PWM)
    Input Voltage 7-12V
    Memory 512KB Flash
    Microcontroller AT91SAM3X8E
    Operating Voltage 3.3V
    SRAM 96KB
    Type Board
