Arduino® Leonardo without Headers

by Arduino
SKU 490718

MPN: A000052

Availability:
Out of stock
Sold out
Original price £20.00 - Original price £20.00
Original price
£20.00
£20.00 - £20.00
Current price £20.00

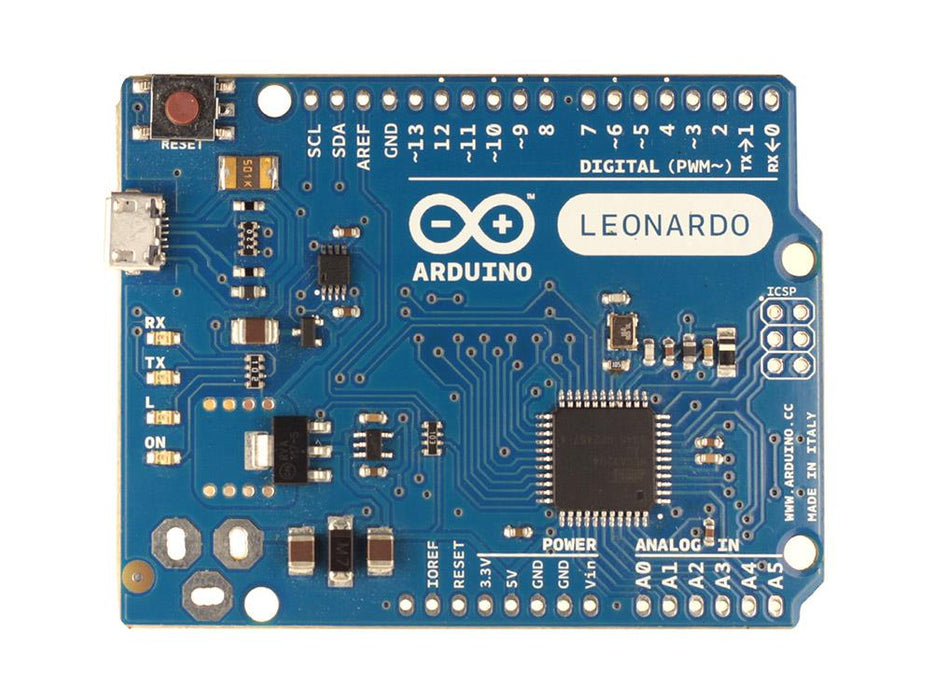

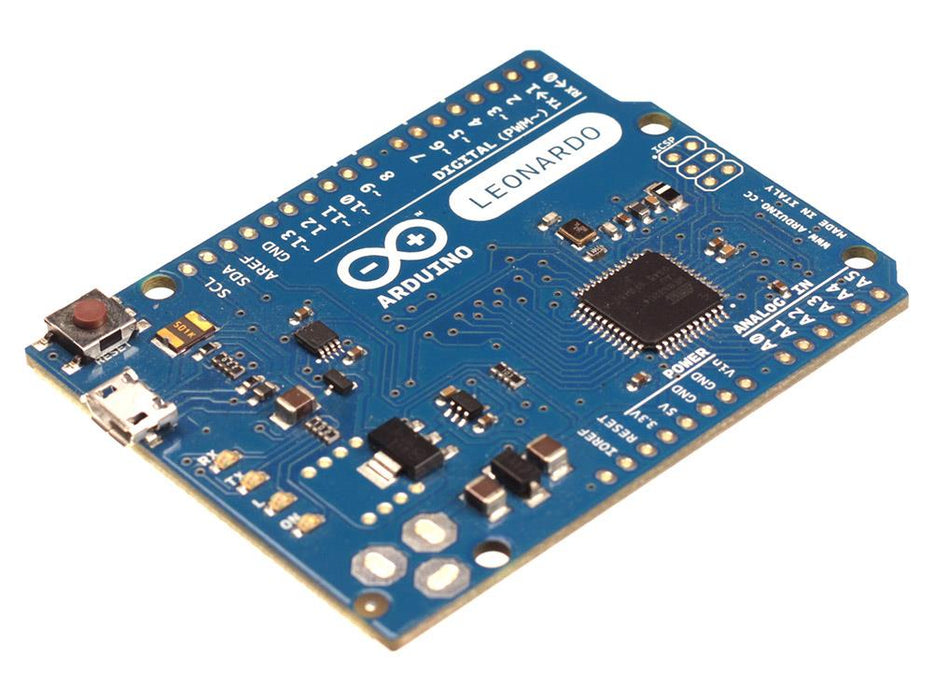

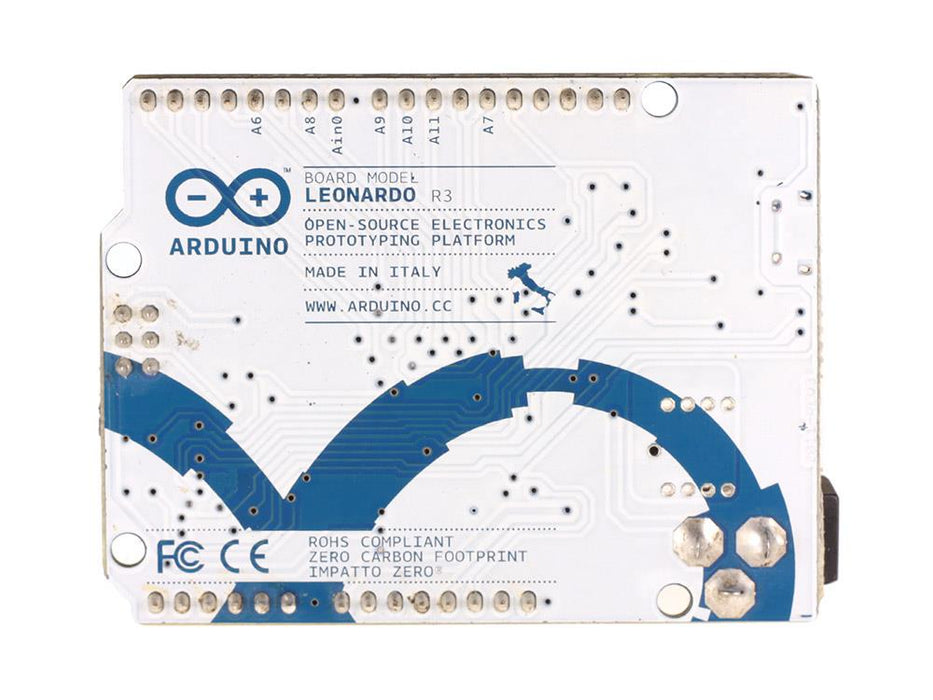

The Arduino Leonardo is a microcontroller board based on the ATmega32u4. This version of the board is made without headers. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

  • Based on ATmega32u4
  • Supports USB communication
  • Flexible I/O pins
  • Inbuilt USB port
  • Seamless integration
  • Specification
    Clock Speed 16 MHz
    DC Current for Pin 50 mA (3.3V)
    DC Current Per I/O Pin 40 mA
    Digital I/O Pins 20 (7 PWM)
    EEPROM 1KB
    Input Voltage 7-12V
    Memory 32KB Flash
    Microcontroller ATmega32u4
    Operating Voltage 5V
    SRAM 2.5KB
    Type Board
