Arduino® Micro
by Arduino
SKU 490719
MPN: A000053
Availability:
24 in stock
Original price
£22.00
-
Original price
£22.00
Original price
£22.00
£22.00
-
£22.00
Current price
£22.00

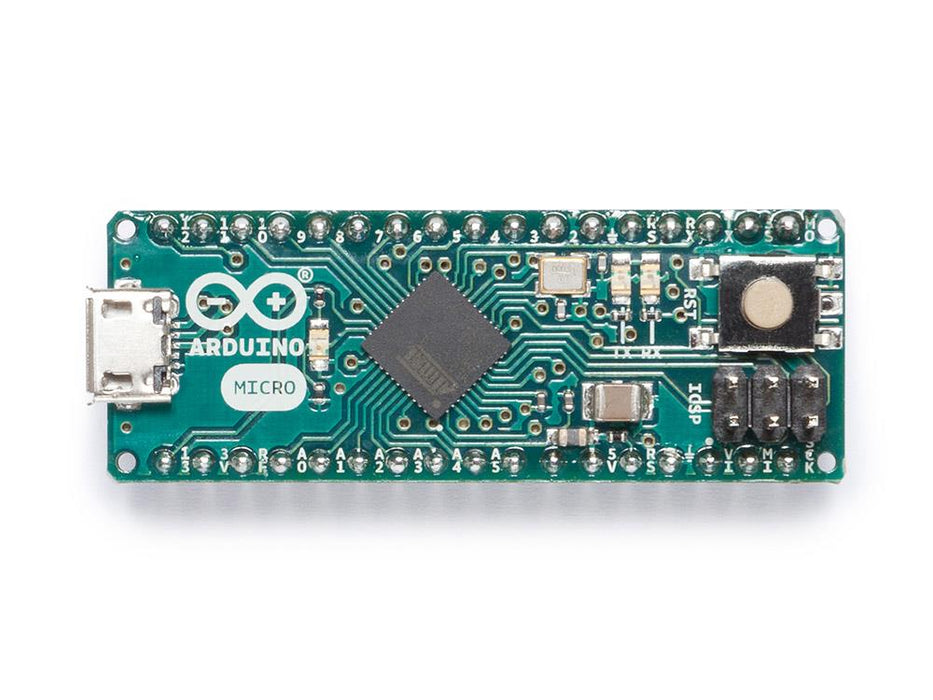

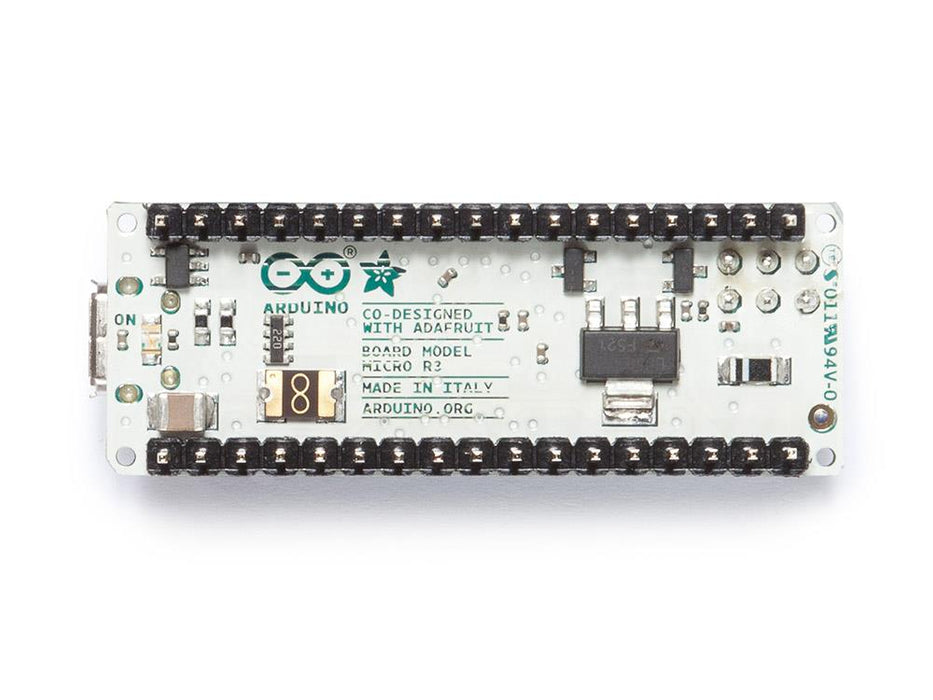

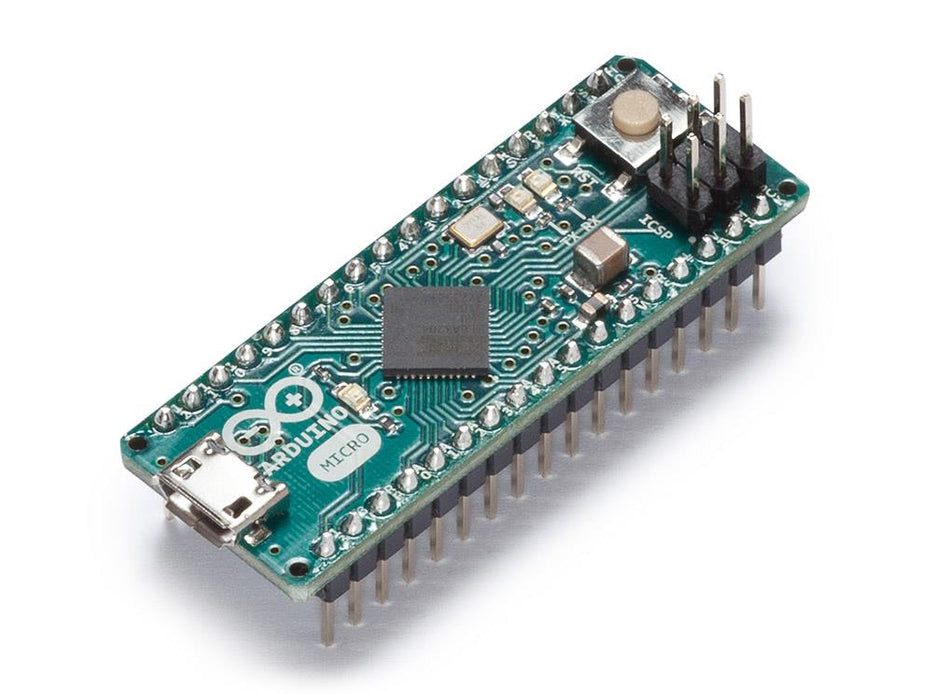

The Micro is a microcontroller board based on the ATmega32U4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard. The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Based on ATmega32u4 Supports USB communication Flexible I/O pins Inbuilt USB port Seamless integration
Specification
Clock Speed | 16 MHz |
DC Current for Pin | 50 mA (3.3V) |
DC Current Per I/O Pin | 20 mA |
Digital I/O Pins | 20 (7 PWM) |
EEPROM | 1KB |
Input Voltage | 7-12V |
LED Built In | 13 |
Memory | 32KB Flash |
Microcontroller | ATmega32U4 |
Operating Voltage | 5V |
SRAM | 2.5KB |
Type | Board |
