Arduino® MKR NB 1500
by Arduino
SKU 490733
MPN: ABX00019
Availability:
Out of stock
Sold out
Original price
£78.00
-
Original price
£78.00
Original price
£78.00
£78.00
-
£78.00
Current price
£78.00

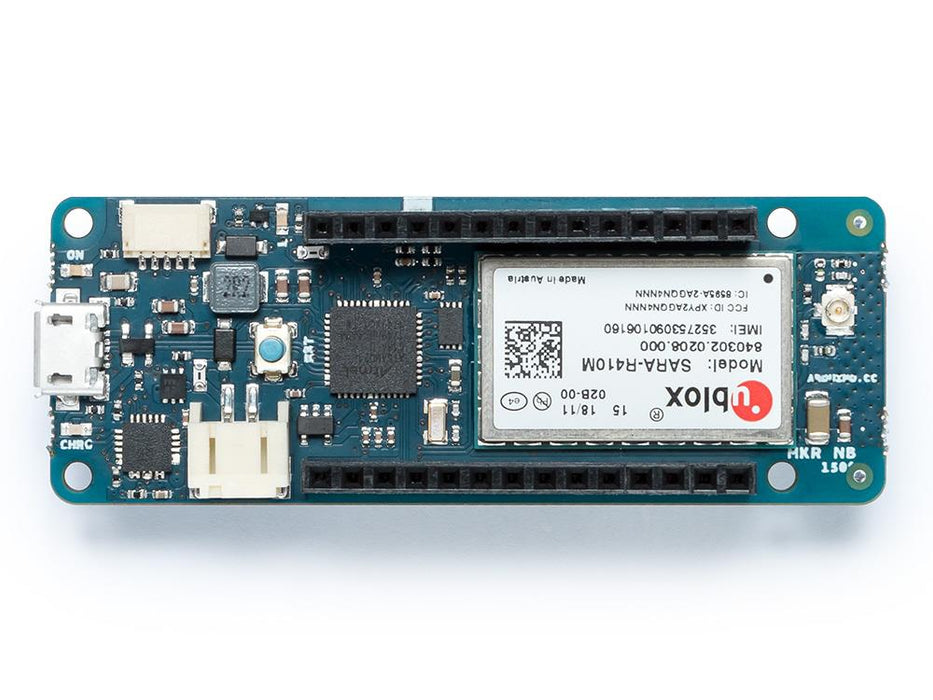

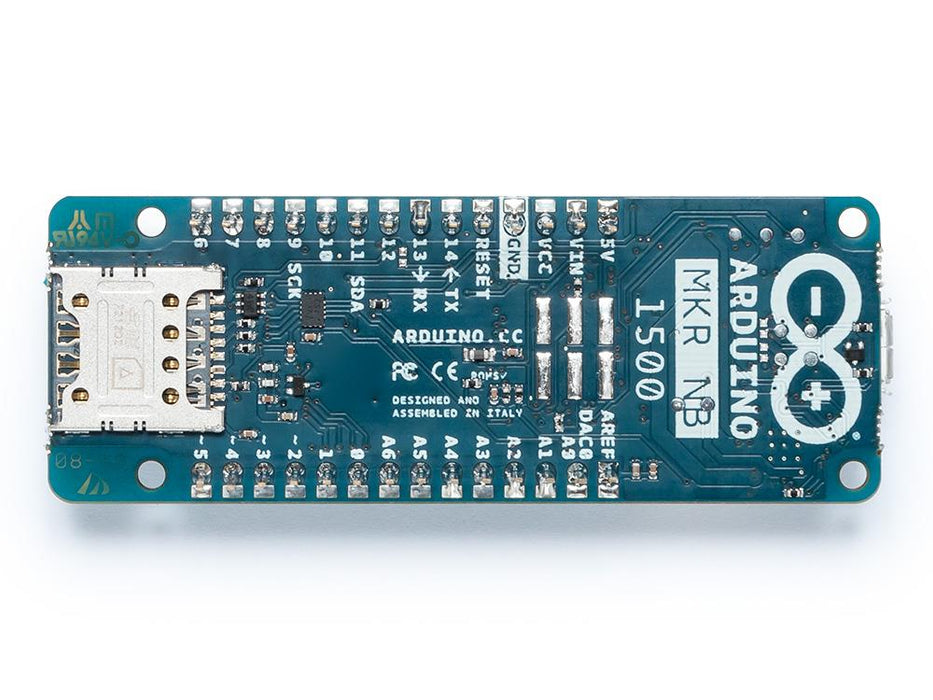

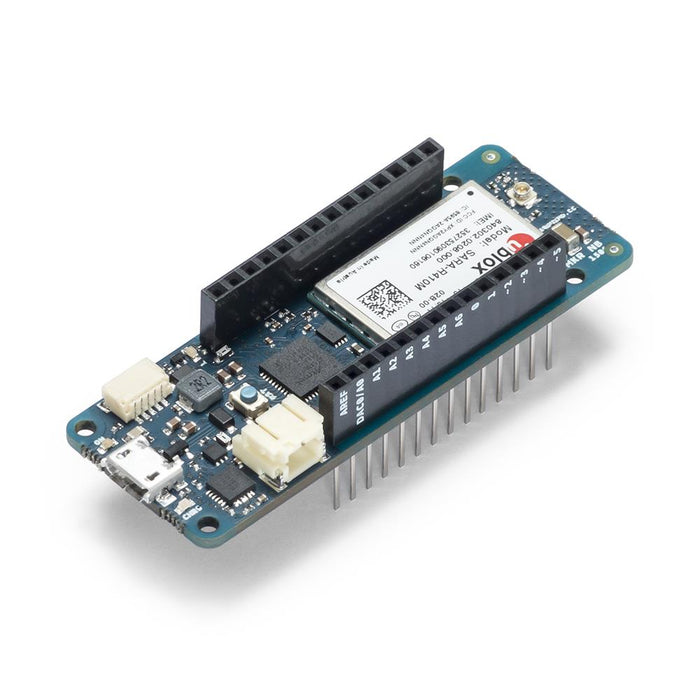

Add Narrowband communication to your project with the MKR NB 1500. It's the perfect choice for devices in remote locations without an Internet connection, or in situations in which power isn't available like on-field deployments, remote metering systems, solar-powered devices, or other extreme scenarios. The board's main processor is a low power Arm Cortex-M0 32-bit SAMD21, like in the other boards within the Arduino MKR family. The Narrowband connectivity is performed with a module from u-blox, the SARA-R410M-02B, a low power chipset operating in the different bands of the IoT LTE cellular range. On top of those, secure communication is ensured through the Microchip ECC508 crypto chip. Besides that, the pcb includes a battery charger, and a connector for an external antenna. This board is designed for global use, providing connectivity on LTE's Cat M1/NB1 bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28. USB port can be used to supply power (5V) to the board. It has a Li-Po charging circuit that allows the board to run on battery power or an external 5 volt source, charging the Li-Po battery while running on external power.
High performance Arduino compatibility Easy to use Reliable connection Wide application range
Specification
| Analog Inputs | 7 |
| Analog Outputs | 1 (DAC) |
| Clock Speed | 48MHz, 32.768kHz (RTC) |
| Connectivity | u-blox SARA-R410M-02B radio module, I2C |
| DC Current Per I/O Pin | 7mA |
| Digital I/O Pins | 22 (13 PWM) |
| External Interrupts | 8 |
| Input Voltage | 5-6V |
| LED Built In | 6 |
| Memory | 256KB Flash |
| Microcontroller | SAMD21 |
| Operating Voltage | 3.3V |
| SPI | 1x |
| SRAM | 32KB |
| Support Batteries | Li-Po Single Cell, 3.7V, 1500mAh Minimum |
| Type | Board |
| UART Interfaces | x1 |
