Arduino® MKR WAN 1310

by Arduino
SKU 490740

MPN: ABX00029

Availability:
Out of stock
Sold out
Original price £40.00 - Original price £40.00
Original price
£40.00
£40.00 - £40.00
Current price £40.00

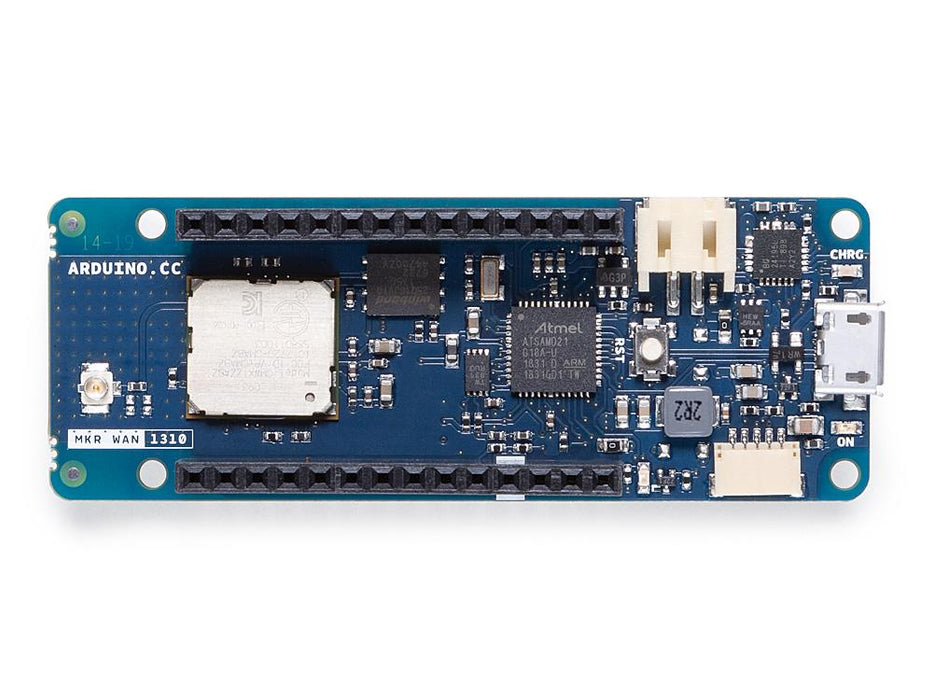

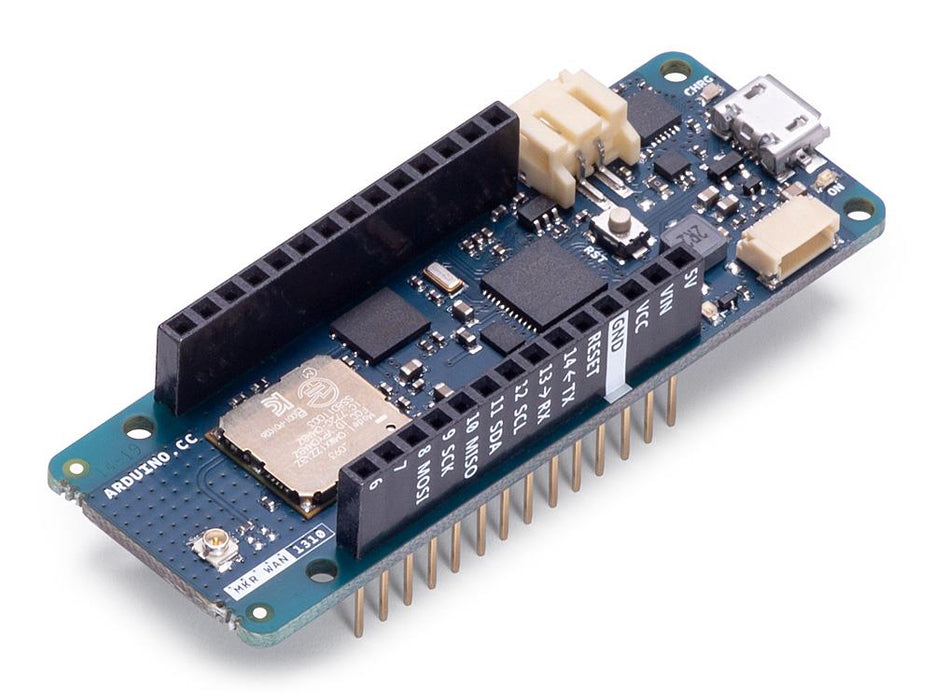

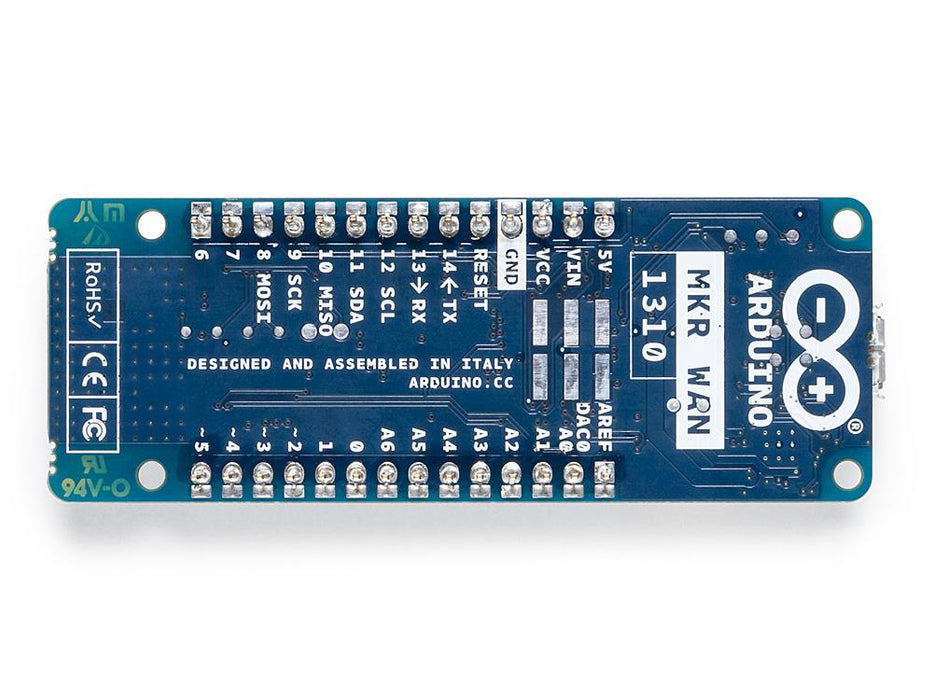

The Arduino MKR WAN 1310 board provides a practical and cost effective solution to add LoRa connectivity to projects requiring low power. This open-source board can be connected to: the Arduino IoT Cloud, your own LoRa network using the Arduino LoRa PRO Gateway, existing LoRaWAN® infrastructure like The Things Network, or even other boards using the direct connectivity mode. The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, it includes a new battery charger, a 2MByte SPI Flash, and improved control of the board's power consumption. The latest modifications have considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104uA. It is also possible to use the USB port to supply power (5V) to the board; run the board with or without batteries - the choice is yours. Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2MByte Flash. The MKR WAN 1310's crypto chip adds further security by storing credentials & certificates in the embedded secure element. These features make it the perfect IoT node and building block for low-power wide-area IoT devices.

  • High performance
  • Arduino compatibility
  • Easy to use
  • Reliable connection
  • Wide application range
  • Specification
    Analog Inputs 7
    Analog Outputs 1 (DAC)
    Clock Speed 48MHz, 32.768kHz (RTC)
    Connectivity CMWX1ZZABZ radio module, I2C
    DC Current Per I/O Pin 7mA
    Digital I/O Pins 22 (13 PWM)
    External Interrupts 8
    Input Voltage 5V
    LED Built In 6
    Memory 256KB Flash, 2MB Flash QSPI
    Microcontroller SAMD21
    Operating Voltage 3.3V
    SPI 1x
    SRAM 32KB
    Support Batteries Rechargeable Li-Ion, or Li-Po, 1024mAh Minimum
    Type Board
    UART Interfaces x1
