Arduino® MKR ZERO
by Arduino
SKU 490732
MPN: ABX00012
Availability:
Out of stock
Sold out
Original price
£27.50
-
Original price
£27.50
Original price
£27.50
£27.50
-
£27.50
Current price
£27.50

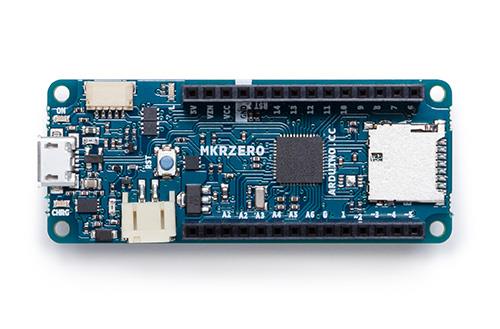

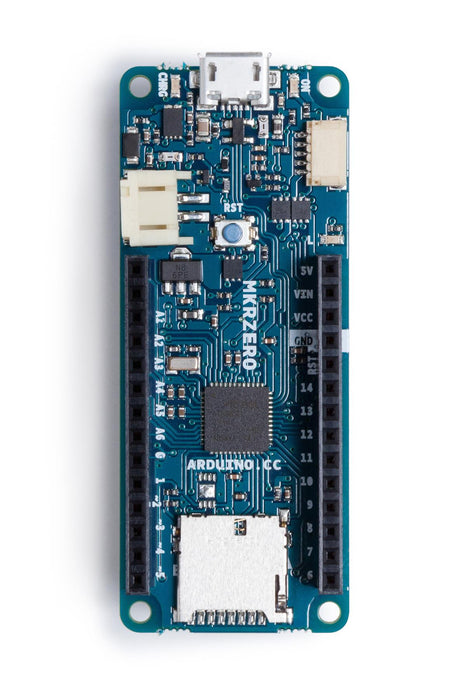

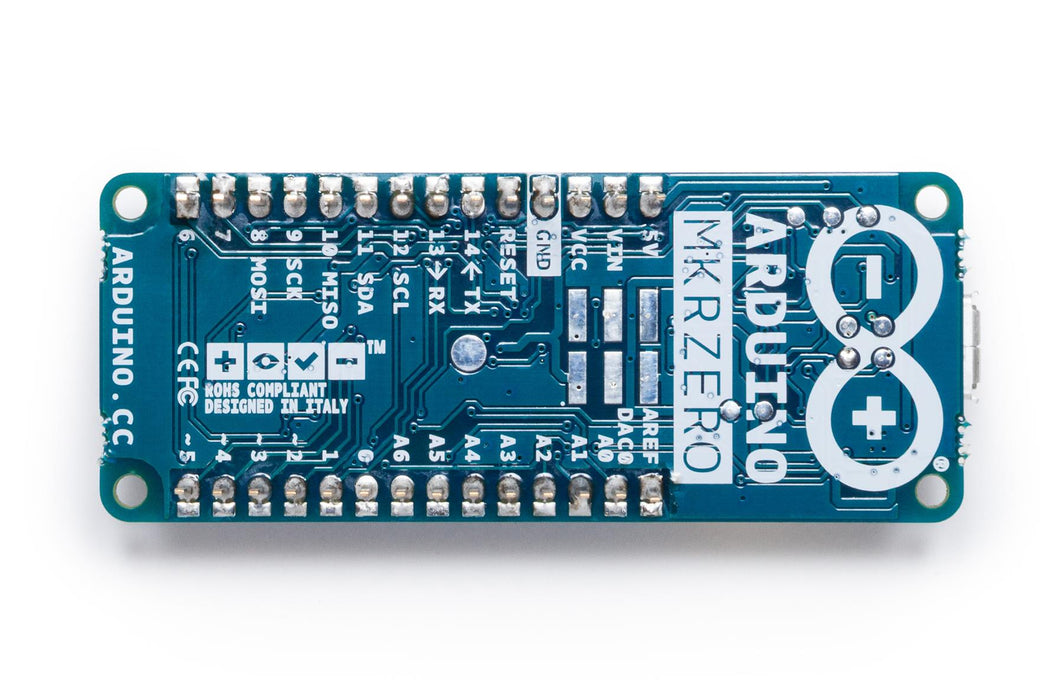

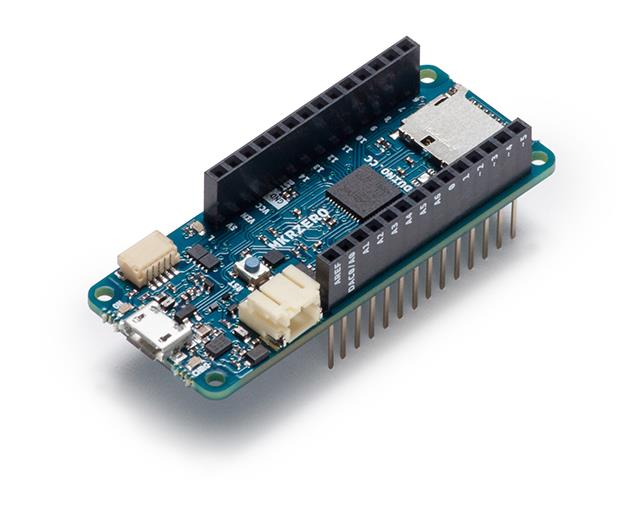

The MKR ZERO brings you the power of a Zero in the smaller format established by the MKR form factor. The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an on-board SD connector with dedicated SPI interfaces that allows you to play with MUSIC files with no extra hardware! The board is powered by Atmel's SAMD21 MCU, which features a 32-bit ARM Cortex M0+ core. Unlike most Arduino boards, the MKRZero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V and applying voltages higher than 3.3V to any I/O pin could damage the board. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it by a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists.
High performance Arduino compatibility Easy to use Reliable connection Wide application range
Specification
| Analog Inputs | 7 |
| Analog Outputs | 1 (DAC) |
| Clock Speed | 48MHz, 32.768kHz (RTC) |
| Connectivity | I2C |
| DC Current for Pin | 600mA (3.3V + 5V) |
| DC Current Per I/O Pin | 7mA |
| Digital I/O Pins | 22 (12 PWM) |
| External Interrupts | 10 |
| Input Voltage | 5-6V |
| LED Built In | 32 |
| Memory | 256KB Flash |
| Microcontroller | SAMD21 |
| Operating Voltage | 3.3V |
| SPI | 1x |
| SRAM | 32KB |
| Support Batteries | Li-Po Single Cell, 3.7V, 700mAh Minimum |
| Type | Board |
| UART Interfaces | x1 |
