Arduino® Nano 33 IoT
by Arduino
SKU 490736
MPN: ABX00027
Availability:
50 in stock
Original price
£23.00
-
Original price
£23.00
Original price
£23.00
£23.00
-
£23.00
Current price
£23.00

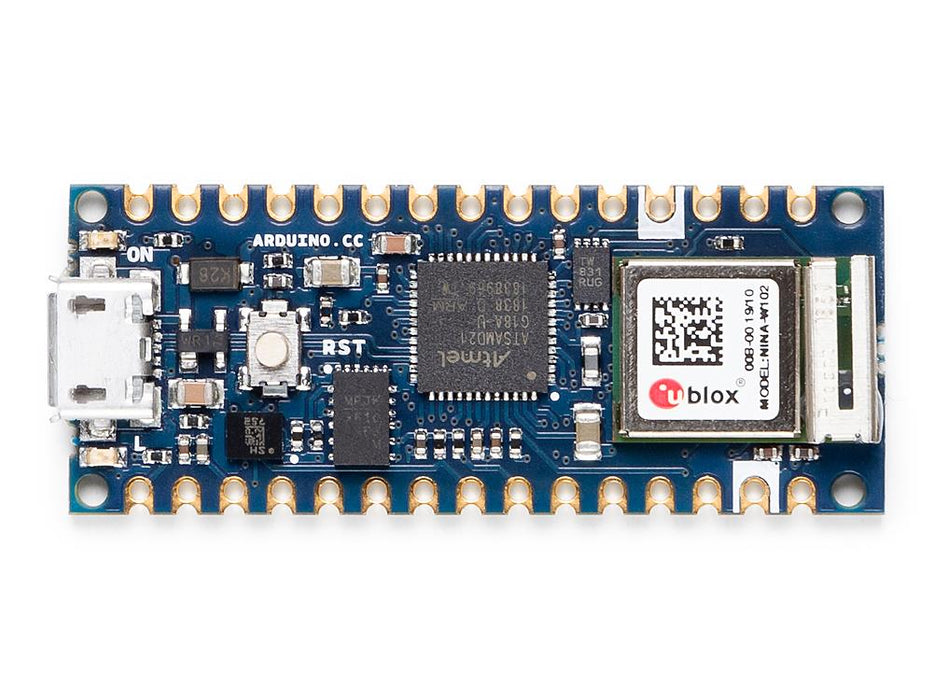

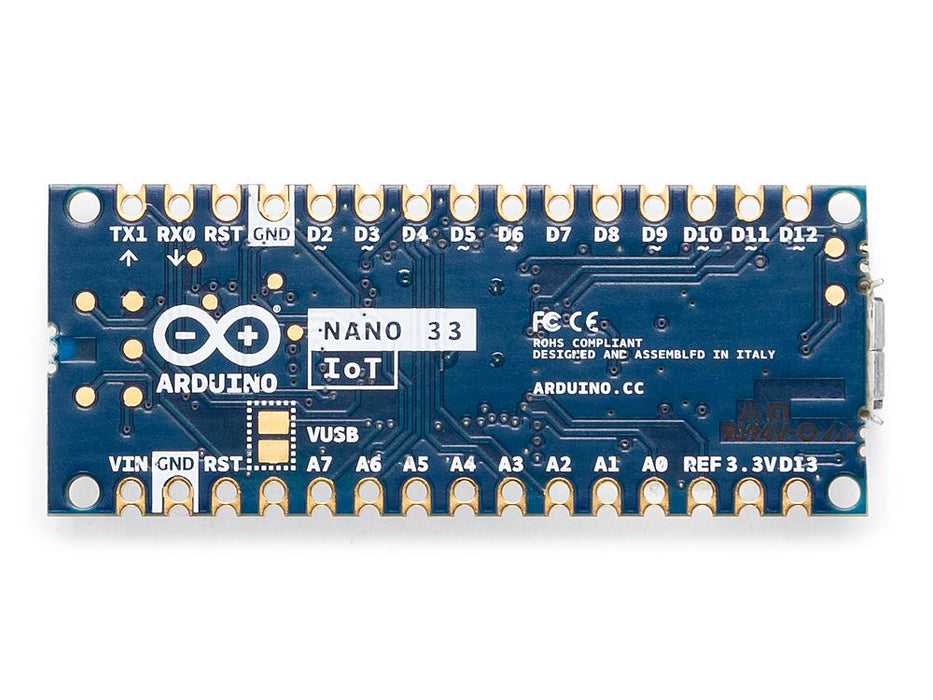

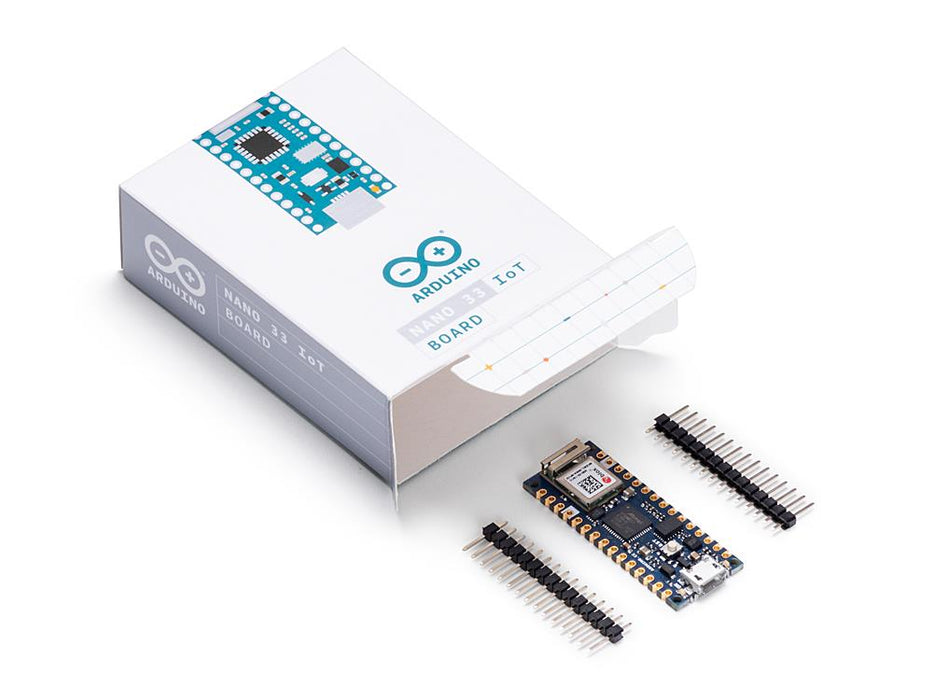

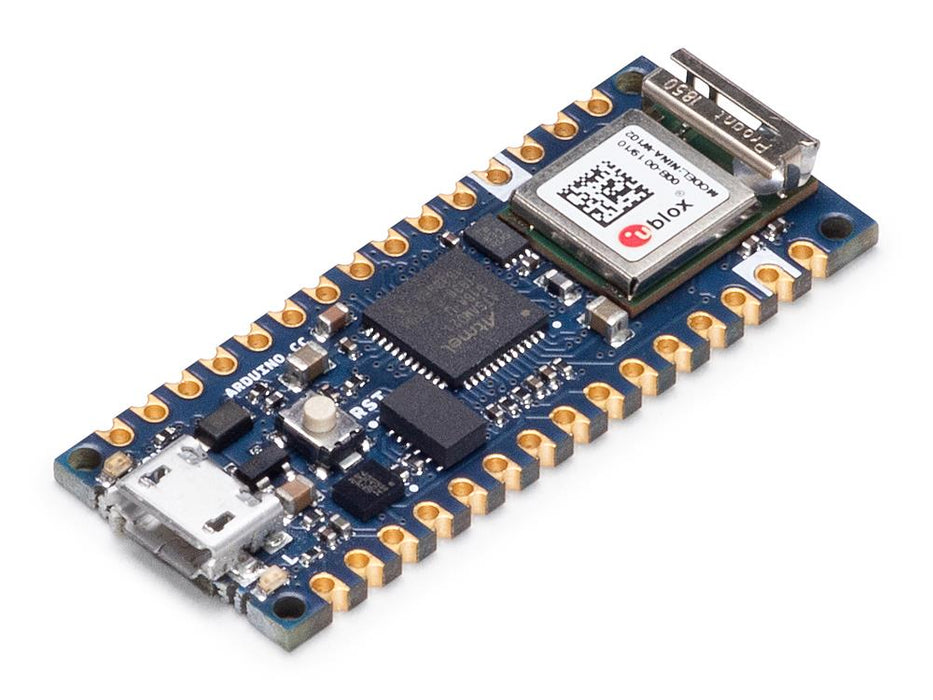

The Arduino Nano 33 IoT is the easiest and cheapest point of entry to enhance existing devices (and creating new ones) to be part of the IoT and designing pico-network applications. This version of the board comes without headers. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a Bluetooth Low Energy device sending data to a mobile phone, the Nano 33 IoT is your one-stop-solution for many of the basic IoT application scenarios. The board's main processor is a low power Arm Cortex-M0 32-bit SAMD21. The WiFi and Bluetooth connectivity is performed with a module from u-blox, the NINA-W10, a low power chipset operating in the 2.4GHz range. On top of those, secure communication is ensured through the Microchip ECC608 crypto chip. Besides that, you can find a 6 axis IMU, what makes this board perfect for simple vibration alarm systems, pedometers, relative positioning of robots, etc. You can get your board to connect to any kind of existing WiFi network or use it to create your own Arduino Access Point. The communications chipset on the Nano 33 IoT can be both a Bluetooth and Bluetooth Low Energy client and host device.
Compact microcontroller board Powered by ATmega328 USB and power compatibility Small yet powerful Easy prototyping support
Specification
Analog Inputs | 8 |
Analog Outputs | 1 (DAC) |
Clock Speed | 48MHz |
Connectivity | u-blox NINA-W102 radio module, I2C |
DC Current Per I/O Pin | 7mA |
Digital I/O Pins | 14 (11 PWM) |
External Interrupts | 14 |
Input Voltage | 5-21V |
LED Built In | 13 |
Memory | 256KB Flash |
Microcontroller | SAMD21 |
Operating Voltage | 3.3V |
SPI | 1x |
SRAM | 32KB |
Type | Board |
UART Interfaces | x1 |
