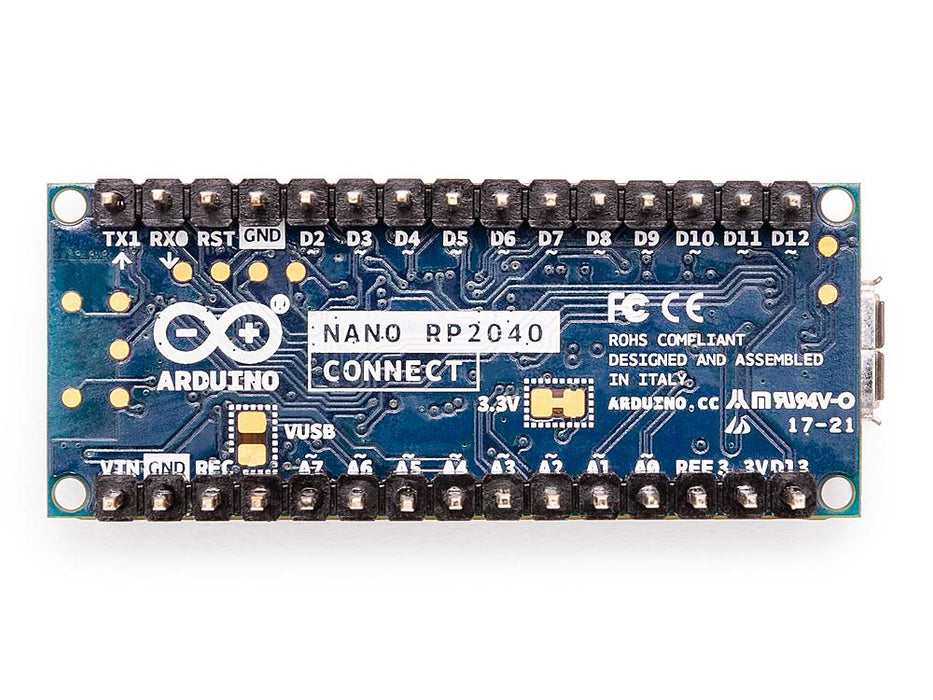

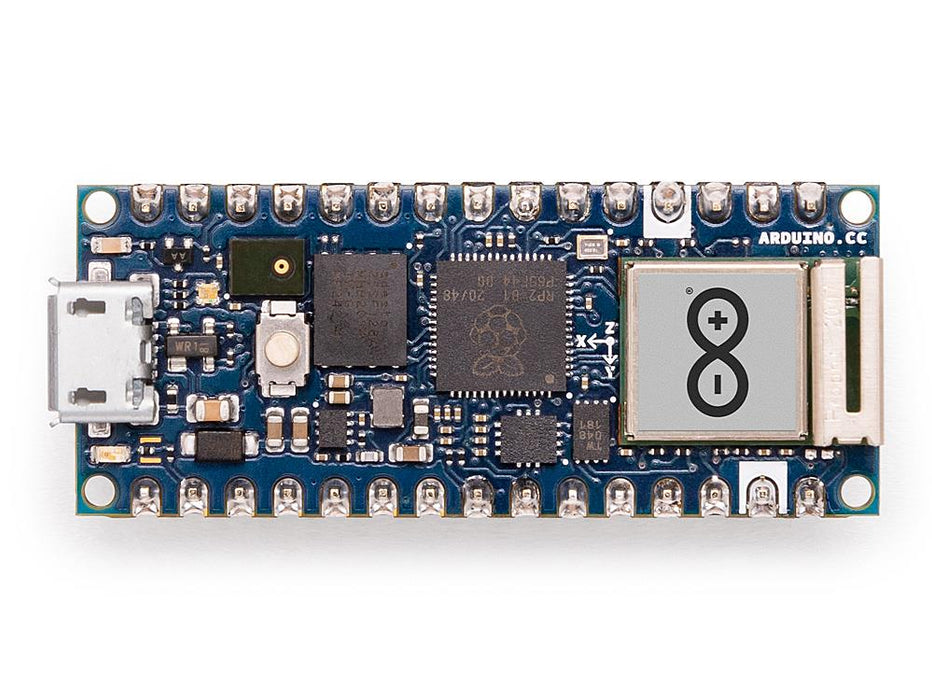

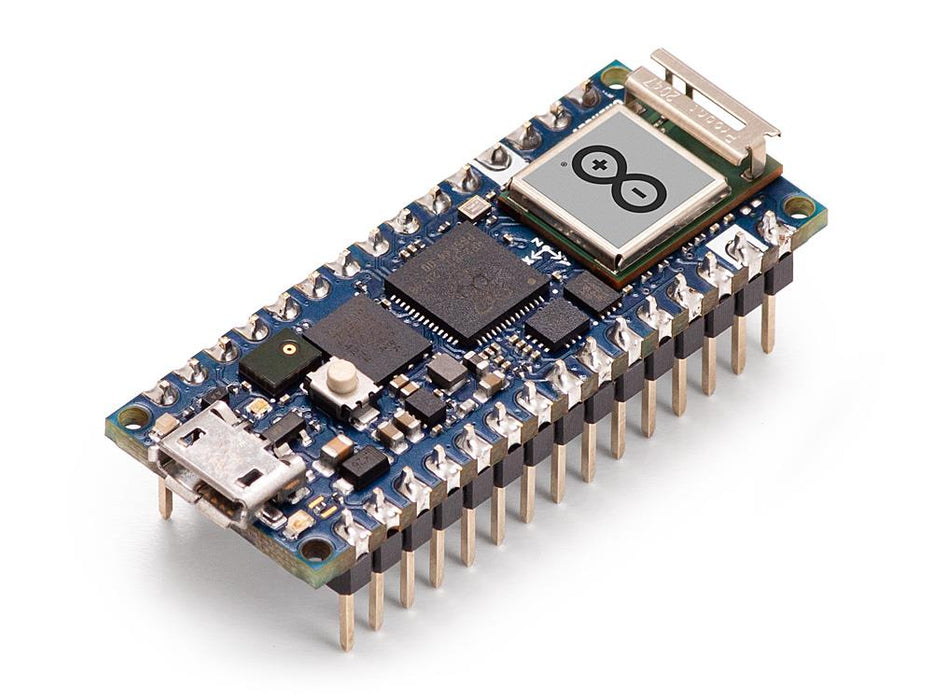

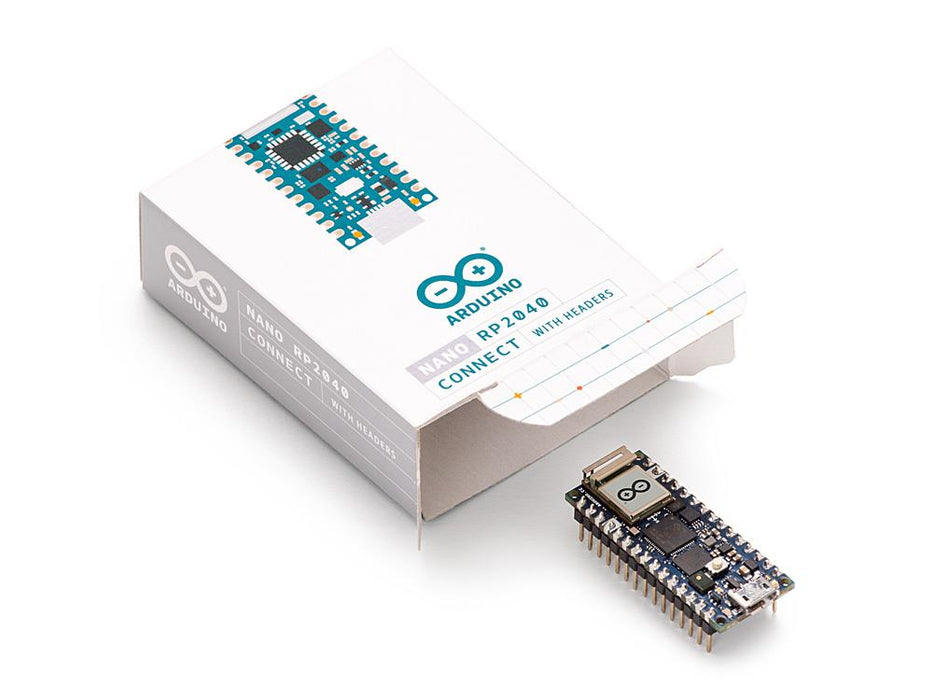

Arduino® Nano RP2040 Connect with headers
by Arduino
SKU 490752
MPN: ABX00053
Availability:
Out of stock
Sold out
Original price
£27.00
-
Original price
£27.00
Original price
£27.00
£27.00
-
£27.00
Current price
£27.00
Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features. This version of the board comes with headers. The brain of the board is the Raspberry Pi RP2040 silicon; a dual-core Arm Cortex M0+ running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage. A highly adaptable u-blox NINA-W102 radio module is installed making it an excellent choice for IoT applications and makes this the only connected RP2040 option. It gives you full WiFi 802.11b/g/n connectivity, along with Bluetooth and Bluetooth Low Energy v4. Packed onto this tiny board are a couple of very useful sensors. A built-in mic is there for sound activation, audio control and even AI voice recognition. The six-axis smart IMU with AI capabilities tells the board which way it's moving and adds fall sensing and double-tap activation. It matches the established Arduino Nano form factor, making it the perfect upgrade for projects of all sizes. With 16MB flash memory that's external to the microprocessor, there's much more room for your code and storage needs. I/O pins are 22 digital, 20 with PWM and 8 analog.
Compact microcontroller board Powered by ATmega328 USB and power compatibility Small yet powerful Easy prototyping support
Specification
Analog Inputs | 8 |
Connectivity | Wi-Fi, Bluetooth, UART, I2C |
DC Current Per I/O Pin | 4mA |
Digital I/O Pins | 20 (18 PWM) |
External Interrupts | 18 |
Input Voltage | 5-21V |
Memory | 16MB Flash |
Microcontroller | RaspberryPi RP2040 |
SPI | 1x |
Type | Board |
