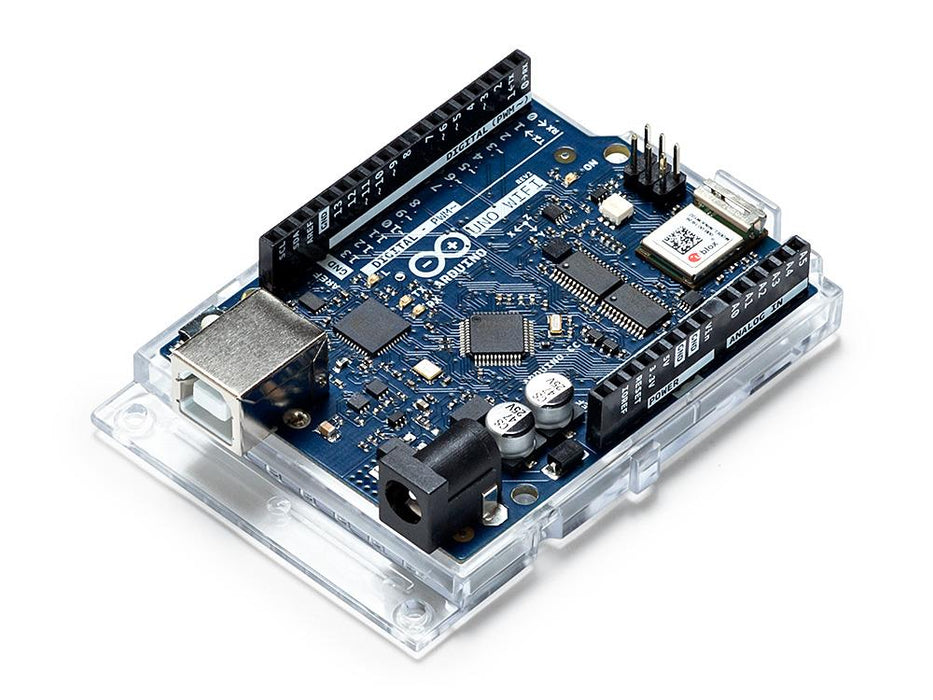

Arduino® UNO WiFi REV2

by Arduino
SKU 490734

MPN: ABX00021

Availability:
Out of stock
Sold out
Original price £46.00 - Original price £46.00
Original price
£46.00
£46.00 - £46.00
Current price £46.00
The Arduino UNO WiFi Rev.2 is the easiest point of entry to basic IoT with the standard form factor of the UNO family. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a Bluetooth Low Energy device sending data to a mobile phone, the Arduino UNO WiFi Rev.2 is your one-stop-solution for many of the basic IoT application scenarios. Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi / Bluetooth and some other enhancements. It incorporates the brand new ATmega4809 8-bit microcontroller from Microchip and has an onboard IMU (Inertial Measurement Unit) LSM6DS3TR. The Wi-Fi Module is a self-contained SoC with integrated TCP/IP protocol stack that can provide access to a Wi-Fi network, or act as an access point. The Arduino UNO WiFi Rev.2 has 14 digital input/output pins that can be used as PWM outputs, 6 analog inputs, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with an AC adapter or battery to get started. This board has the Microchip ATmega4809 microcontroller, but thanks to the compatibility layer included in the core, you can run all the sketches made for the UNO's ATmega328P microconntroller on the ATmega4809. The communications chipset on the Arduino UNO WiFi Rev.2 can be both a Bluetooth and Bluetooth Low Energy client and host device.

  • High performance
  • Arduino compatibility
  • Easy to use
  • Reliable connection
  • Wide application range
  • Specification
    Analog Inputs 6
    Clock Speed 16 MHz
    Connectivity u-blox NINA-W102 radio module
    DC Current for Pin 50 mA (3.3V)
    DC Current Per I/O Pin 20mA
    Digital I/O Pins 14 (5 PWM)
    EEPROM 256B
    Input Voltage 6-20V
    LED Built In 25
    Memory 48KB Flash
    Microcontroller ATmega4809
    Operating Voltage 5V
    SRAM 6KB
    Type Board
